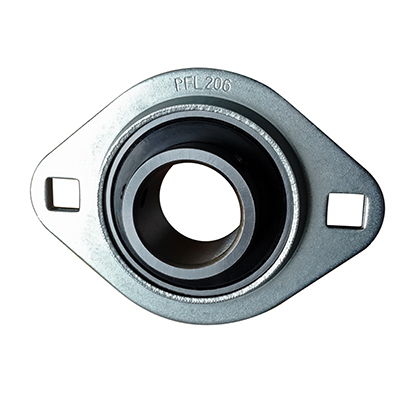

  • Product name:  Pressed Housing Types SBPFL200
  • Price:  ASK
  • Post date:  2019-10-11
  • Stock Quantity:  10000
  • Quantity:

  • Send Inquiry
  • share to:42K
Description:

Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Housing NO. Weight(kg)
d a e b m S t f(min) B n
SBPFL208-25 1-9/16 5-13/16 4-11/16 3-15/16 13/16 17/32 0.268 3-37/64 1.3386 0.3543 1/2 SB208-25 PFL208 0.75
SBPFL208-24 1-1/2 5-13/16 4-11/16 3-15/16 13/16 17/32 0.268 3-37/64 1.3386 0.3543 1/2 SB208-24 PFL208 0.75
SBPFL208 40 148 119 100 21 13.5 6.8 91 34 9 M12 SB208 PFL208 0.75
SBPFL207-23 1-7/16 4-13/16 3-15/16 3-45/64 25/32 7/16 0.205 3-3/16 1.2598 0.3346 3/8 SB207-23 PFL207 0.53
SBPFL207-22 1-3/8 4-13/16 3-15/16 3-45/64 25/32 7/16 0.205 3-3/16 1.2598 0.3346 3/8 SB207-22 PFL207 0.53
SBPFL207-21 1-5/16 4-13/16 3-15/16 3-45/64 25/32 7/16 0.205 3-3/16 1.2598 0.3346 3/8 SB207-21 PFL207 0.53
SBPFL207-20 1-1/4 4-13/16 3-15/16 3-45/64 25/32 7/16 0.205 3-3/16 1.2598 0.3346 3/8 SB207-20 PFL207 0.53
SBPFL207 35 122 100 94 20 11 5.2 81 32 8.5 M10 SB207 PFL207 0.53
SBPFL206-20 1-1/4 4-7/16 3-9/16 3-5/16 23/32 7/16 0.205 2-51/64 1.1811 0.315 3/8 SB206-20 PFL206 0.4
SBPFL206-19 1-3/16 4-7/16 3-9/16 3-5/16 23/32 7/16 0.205 2-51/64 1.1811 0.315 3/8 SB206-19 PFL206 0.4
SBPFL206-18 1-1/8 4-7/16 3-9/16 3-5/16 23/32 7/16 0.205 2-51/64 1.1811 0.315 3/8 SB206-18 PFL206 0.4
SBPFL206-17 1-1/16 4-7/16 3-9/16 3-5/16 23/32 7/16 0.205 2-51/64 1.1811 0.315 3/8 SB206-17 PFL206 0.4
SBPFL206 30 113 90.5 84 18 11 5.2 71 30 8 M10 SB206 PFL206 0.4
SBPFL205-16 1 3-3/4 2-63/64 2-51/64 23/32 23/64 0.157 2-23/64 1.063 0.2953 5/16 SB205-16 PFL205 0.25
SBPFL205-15 15/16 3-3/4 2-63/64 2-51/64 23/32 23/64 0.157 2-23/64 1.063 0.2953 5/16 SB205-15 PFL205 0.25
SBPFL205-14 7/8 3-3/4 2-63/64 2-51/64 23/32 23/64 0.157 2-23/64 1.063 0.2953 5/16 SB205-14 PFL205 0.25
SBPFL205-13 13/16 3-3/4 2-63/64 2-51/64 23/32 23/64 0.157 2-23/64 1.063 0.2953 5/16 SB205-13 PFL205 0.25
SBPFL205 25 95 76 71 18 9 4 60 27 7.5 M8 SB205 PFL205 0.25
SBPFL204-12 3/4 3-35/64 2-13/16 2-41/64 5/8 23/64 0.157 2-13/64 0.9843 0.2756 5/16 SB204-12 PFL204 0.22
SBPFL204 20 90 71.5 67 16 9 4 56 25 7 M8 SB204 PFL204 0.22
