  • Product name:  KI196 a roller type freewheel
  • Price:  ASK
  • Post date:  2019-04-24
  • Stock Quantity:
  • Quantity:

  • Send Inquiry
  • share to:42K
Description:



Description

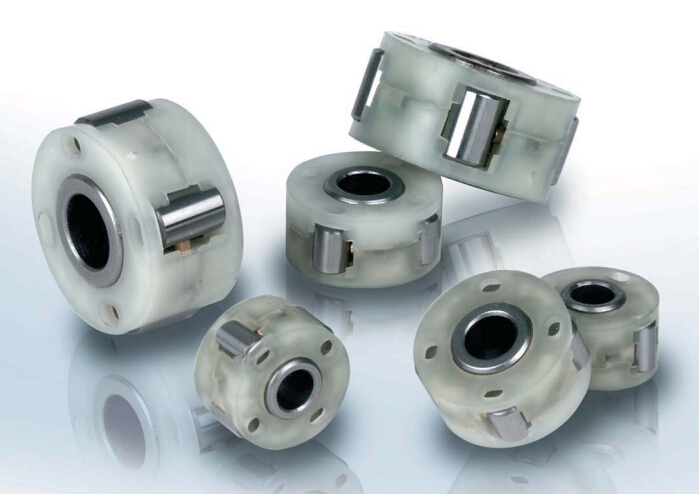

Type KI is a roller type freewheel. It is an assembly comprising of an inner race and rollers fitted into a polyamide cage.

This type of unit can not be dismantled. It is designed for small mechanisms in office equipment, or packaging machines, to be mounted inside gears or feed rollers.

The gear, or feed roller inner diameter is used as the outer race. Additional bearing support is required, and the freewheel must not be subjected to axial loading; mounting examples are shown on the following page.

The outer race does not need to be hardened; min. strength: 700 N/mm2.

The surface roughness will not exceed 22 CLA.

Mounting onto the shaft can be a press fit to r6 tolerance or a glue fit with a clearance of 0,02 to 0,05mm.

Sizes 8 mm and above can be supplied with a keyway.

Temperature range : -40°C to +100°C

(continuous operation). Peak temperatures of +120°C are acceptable for short periods of time.

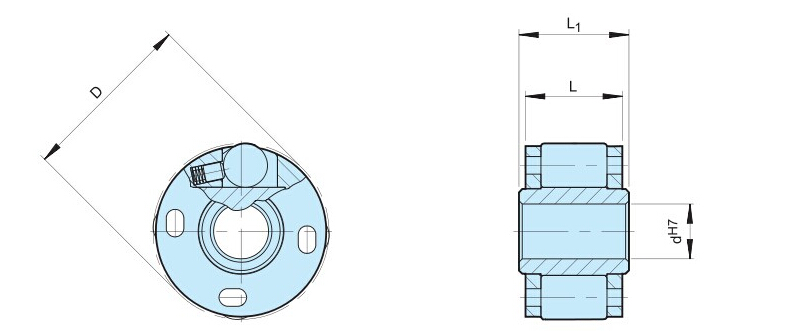

ONE WAY BEARING

Model

d

(mm)

D

(mm)

L

(mm)

Overrunning

speeds

Nimax 2)

(min-1)

Over ruuning

speeds

Namax 3)

(min-1)

Mass

(Kg)

KI196

6

19

9

7000

9000

0.01

Specification of one way clutch bearing:



Model Number

KI196

Brand Name

Stieber, IBS

Structure

needle

Type

roller

Dimension

6*19*10mm

Seals Type

sealed, Separated type

Material

Ring Material Chrome Steel ,Carbon steel, Stainless steel

Cage material

Nylon ,steel , brass

Clearance

C0,C2,C3,C4,C5

Vibration

Zv1,Zv2 and Zv3

Precision Rating

P4

Greese

As you requirement, such as SRL ,PS2, Alvania R12 and so on .

Number of Row

Single Row

Guarantee

One year.

Application

Home appliances, low noise and high speed electric motors,automotive components, pumps, machinery.

Certifications

ISO 9001:2000

Package

Single box or according to buyers requirement .

Place of Origin

Germany

MOQ

1 PCS

Service

(1) Prompt Delivery

(2) OEM

(3) Good Service Offered

(4) Buyer Label Offered

Payment Term

TT/LC/Western Union/Paypal

Port

Qingdao, Shanghai, Guangzhou

Details

1. Ready goods in stock

2. Competitive price

3. High quality and long life


Features of one way clutch bearing:


A Cam Clutch mechanism integrated into a ball bearing cassette(#62 type)!

1)Compact Design

More efficient use of space with a one-way clutch and ball bearings all in a compact unit within the same dimensions as the bearings itself.

2)Reduced Cost

Keyless installation by just pressing the clutch into housings or onto shafts. There is no need to machine or harden the shaft as with conventional shell-type roller clutches.

3)Increased Torque Capacity

Many cam are installed between the bearings inner and outer race to allow a significantly increased torque capacity compared to shell-type roller clutches.

4)Full cam complement

The full complement of cams provide the maximum number of load transmitting members per given diameter, The result is a greater torque capacity size-for-size than other clutches.

5)Cam design

Precision formed cams made of a special alloy steel provide extra long wear and fatigue life.

6)High quality components

The clutch races are made of high-quality alloy steel with high surface hardness and core toughness. The races are precision groud, provide excellent concentricity and surface finish to obtain accurate cam rotation.


The major parts of the cam clutch are the cams, inner race, out race, springs and bearings. Each of these parts play an important role in the function of the cam clutch. All parts are made of carefully selected materials, have undergone appropriate heat treatment, and have passed strict quality control checks.


Applications of one way clutch bearing:


Air cleaning plants; Agricultural machines; Buchet elevators; Compressors; Conveyors; Cranes and hoists; Dry cleaning machinery; Duplicator equipment; Fish net machines; Heat-treatment furnaces; Induced draft fans; Multi-states conveyors; Packaging machinery; Printing machinery; Pumps; Punch presses and feeders; Power plants; Refinery equipment; Speed reducers; Standby power units; Textile looms; Two-speed grinders; Two-speed shiftovers; Washing machines; Wire winding machinery.
