NSK Develops Next Generation of Creep-Free™ Bearings for Hybrid and Electric Vehicles
Resource from: NSK Develops Next Generation of Creep-Free™ Bearings for Hybrid and Electric Vehicles Likes:271
Apr 20,2016

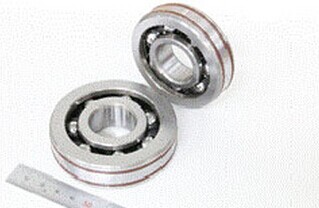

Next Generation of Creep-Free Bearings
NSK Ltd. (NSK; Headquarters: Tokyo, Japan; President and CEO: Toshihiro Uchiyama) today announced that it has developed the next generation of its Creep-Free™ lineup of bearings for hybrid and electric vehicles' drive components, such as transmissions. These new bearings help improve the comfort of hybrid and electric vehicles by suppressing the increase in vibration that is caused by the slip phenomenon in bearings known has creep. NSK is targeting 1.5 billion yen in global sales for this product in 2020.
Development Background and Concerns
In an effort to improve fuel economy, hybrid and electric vehicles typically employ compact, high-speed motors. However, when such motors spin at high speeds, a large imbalance load can occur, resulting in creep in the bearings which in turn can lead to wear in the bearings themselves. Once creep occurs in bearings, the transmission case on the outer side of the bearings will start to wear. The concern is that when this kind of wear occurs, it can lead to an increase in vibration coming from the transmission.
One form of creep encountered is static load*1creep, which occurs when the bearing ring is deformed due to the large amount of load exerted on the outer race of the bearing from the gears of the transmission. Another form of creep is rotational load*2 creep, which occurs due to gaps created between the case and outer race and imbalance loads that occur as the motors spin. In addition, drag can also occur in the outer race due to the frictional force that builds up in the bearing, potentially causing further creep in lightly loaded conditions.
NSK's Creep-Free™ bearings are anchored to the case by employing an O-ring on the outer surface of the outer race and, as such, are effective in preventing rotational load creep.
However, in using the approach of anchoring the bearing to the case, there were concerns in terms of cost and case assemblability. Another concern that arose was in ensuring enough oil resistance for the O-ring for high-temperature oil conditions.
In response to these concerns, NSK created the next generation of its Creep-Free™ bearings by optimizing the design and materials used so that the bearings would no longer need to be mechanically anchored. With the new design, creep occurrence is still suppressed, which reduces case wear and helps to lower the occurrence of vibration.
*1 Static load : Direction of load remains constant
*2 Rotational load : Direction of load continuously changes

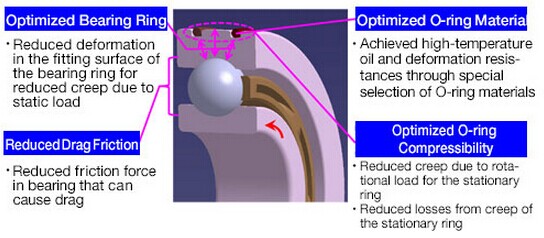

Product Features
(1) Improved static load creep resistance
NSK has optimized the rigidity of the bearing ring to suppress deformation. Doing so made it possible to minimize the increase to the thickness of the material and improve creep resistance for static load caused by gear loads.
(2) Improved rotational load creep resistance
NSK selected an O-ring material that has superior durability in high-temperature oil conditions and optimized the O-ring compression allowance. As a result, rotation load creep caused by imbalance in motors in high-temperature oil conditions has been reduced to about one-fifth of current levels.
(3) Improved productivity
Product Benefits
These new bearings help improve the comfort of hybrid and electric vehicles without a large increase in cost.
