Ruland Quick Clamping Shaft Collars Utilized for Guiding, Spacing, Mounting and Alignment

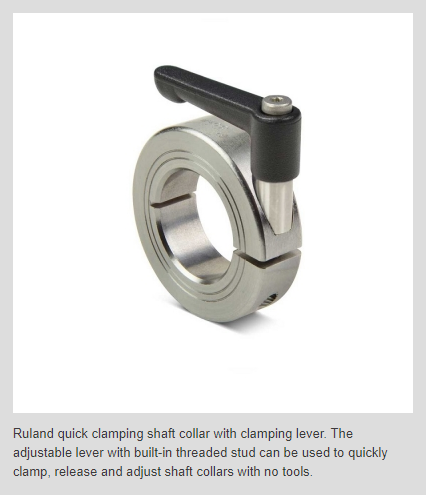

Ruland now supplies quick clamping shaft collars with clamping levers. These adjustable levers mate a Ruland metric and international series inch shaft collar to a specially designed clamping lever, creating a shaft collar that requires no tools to install, remove, or reposition.
Once the lever is installed, users can simply turn it until they meet their desired torque. For fine adjustments, the lever must be lifted and twisted 40 degrees to lock it in a new position. This feature has the added benefit of allowing the lever to be used in space constrained applications where 360-degree motion is not possible. Quick clamping shaft collars with clamping lever are significantly faster to adjust than collars with standard hardware, making them ideally suited for packaging, printing and other applications where frequent set-up changes and adjustments are needed.
Quick clamping shaft collars with clamping lever can be used for guiding, spacing, stopping, mounting and component alignment. They have reduced holding power when compared to standard shaft collars as it is not possible to precisely control seating torque. Designers benefit from the tightly controlled face to bore perpendicularity of Ruland shaft collars (TIR ≤ 0.05 mm or 0.002 inch) which is critical when they are used as a load bearing face or for component alignment. Ruland identifies this work surface with one or two circular grooves on the face of the shaft collar to assist in installation.
Ruland manufactures shaft collars from high-strength 2024 aluminum, 1215 lead-free steel with a proprietary black oxide finish, and 303 and 316 stainless steel. Quick clamping shaft collars with clamping levers are available in sizes ranging from 11 mm to 40 mm or 7/16 inch to 1-1/2 inches. Shaft collars are manufactured in Ruland’s Marlborough, Massachusetts factory under strict controls using proprietary processes. Levers are sourced from JW Winco and have a stainless-steel threaded stud (M4-M6) that is used to replace standard collar hardware. All components in these shaft collars are RoHS3 and REACH compliant.
