Encoder Products Company Offers Profinet Communications

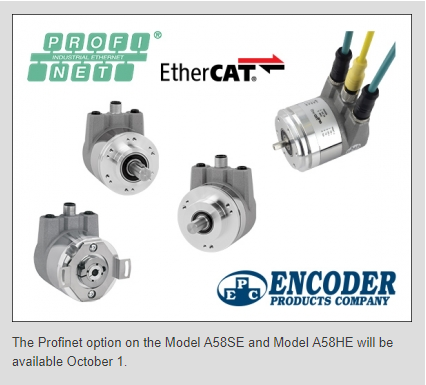

EPC Model A58HE and Model A58SE are Ethernet-ready, multi-turn absolute encoders designed for harsh factory and plant environments. In addition to Ethercat Deterministic Communication, the models A58HE and A58SE now offer Profinet communication protocol as well.

These encoders are particularly suited to applications where fieldbus connectivity is required, and the encoder has to retain absolute position information after power-off events. The Model A58HE is a 58 mm encoder in a blind hollow bore construction, and the Model A58SE is a 58 mm shaft encoder available with either a clamping flange or synchro flange, in both compact and heavy-duty configurations. The compact version is the most compact Ethercat or Profinet-capable encoder available.

“Both the A58HE and A58SE encoders are easily designed into a wide variety of applications,” says Sarah Walter, electrical engineer and EPC technical applications manager. “And with the new heavy-duty model and the new compact model – which is the most compact unit available on the market – they are incredibly versatile mechanically. What really sets our encoders apart, however, is the high accuracy. These absolutes will give you accurate motion feedback, every time.”
