What is the installation method for aligning roller bearings

Resource from:  CBCC Likes:79
Aug 03,2023

What is the installation method for aligning roller bearings

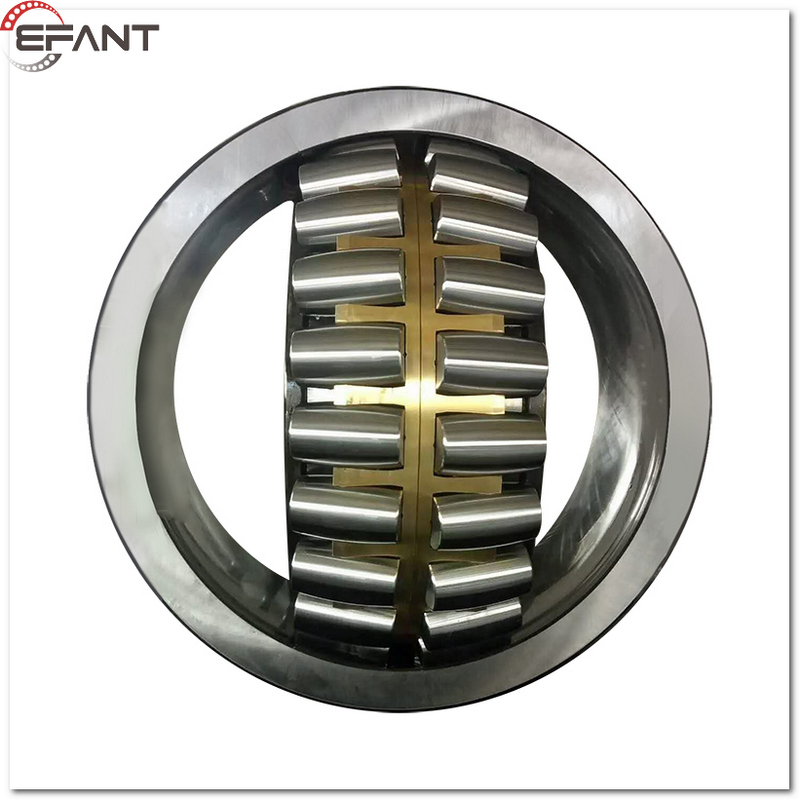

1.jpgAligning roller bearings are a type of rolling element bearing designed to accommodate misalignment between the shaft and the housing, making them suitable for applications where shaft deflection or misalignment occurs. The primary advantage of aligning roller bearings is their ability to handle axial and angular misalignments, which can arise due to thermal expansion, mounting errors, shaft bending, or other factors.

The installation method for aligning roller bearings depends on the specific type of bearing and the application. However, I can provide you with a general guide for installing aligning roller bearings. Please note that it is essential to follow the manufacturer's instructions and guidelines for the specific bearing you are working with. Here are the basic steps:

1.Inspect the Bearing: Before installation, inspect the bearing for any signs of damage or defects. Check the rollers, inner and outer rings, and the cage for any abnormalities. Do not use a damaged bearing.

2.Clean the Bearing: Ensure that the bearing and the surrounding components are clean and free of dirt, debris, and old lubricant. Use a suitable cleaning solvent or method recommended by the manufacturer.

3.Lubrication: Apply the appropriate type and amount of lubricant to the bearing components, following the manufacturer's recommendations. Proper lubrication is crucial for the bearing's performance and longevity.

4.Proper Handling: Handle the bearing with care and use suitable tools, such as clean gloves or mounting tools, to avoid introducing dirt or damage during installation.

5.Check Fit and Tolerance: Verify that the shaft and housing meet the required fit and tolerance specifications for the bearing. The proper fit ensures the bearing's correct functioning and prevents premature failure.

6.Aligning the Bearing: Aligning roller bearings can accommodate slight misalignment. During installation, it is essential to allow some axial movement to ensure proper alignment.

7.Mounting the Bearing: Depending on the bearing design, there are different methods for mounting aligning roller bearings. The most common methods are:

a. Press-fit: For press-fit bearings, use a suitable mounting tool or hydraulic press to apply even force on the bearing's inner or outer ring, avoiding excessive pressure that could damage the bearing.

b. Thermal Method: In some cases, the bearing may need to be heated to expand slightly, making it easier to mount on the shaft or into the housing. Conversely, cooling the bearing may also be necessary for specific applications.

c. Locking Devices: Some bearings may use locking devices, such as adapter sleeves or withdrawal sleeves, to facilitate mounting.

8.Bearing Housing: Ensure the bearing housing is clean, aligned, and free from burrs or rough edges that could cause damage to the bearing during installation.

9.Securely Fasten: After mounting the bearing, ensure it is securely fastened to the shaft or housing according to the manufacturer's recommendations. Use the appropriate mounting method (e.g., setscrews, locknuts) to prevent axial movement.

10.Double-check Alignment: Once the bearing is installed, check for proper alignment and smooth rotation. Make any necessary adjustments to ensure the bearing operates correctly.
