What is the installation method of cross tapered roller bearings

Resource from:  CBCC Likes:83
Sep 12,2023

What is the installation method of cross tapered roller bearings

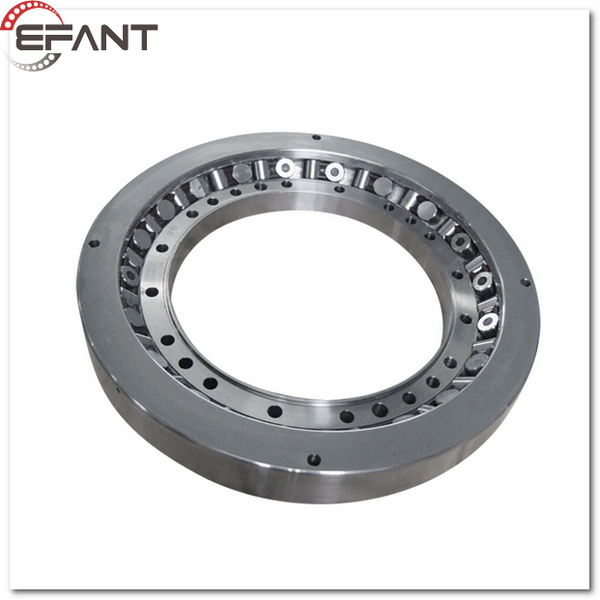

Cross tapered roller bearings are a specialized type of roller bearing designed to handle both radial and axial (thrust) loads simultaneously. They are also known as crossed roller bearings or crossed roller slewing bearings. These bearings are commonly used in various applications where precise rotational movement and high load-carrying capacity are required. Cross tapered roller bearings have a unique design that allows them to achieve high stiffness, accuracy, and rigidity.
The installation of cross tapered roller bearings involves precise steps to ensure their proper functioning and longevity. Here is a general installation method for cross tapered roller bearings:

1.Prepare the Work Area:

Start by ensuring that the work area is clean and free from dirt and contaminants to prevent damage to the bearings.

Wear clean gloves to prevent transferring dirt and oil from your hands to the bearings.

2.Inspect the Bearings:

Examine the cross tapered roller bearings for any visible signs of damage or defects before installation.

Confirm that the bearings meet the specifications required for your application.

3.Lubricate the Bearings:

Apply a thin, even layer of the appropriate lubricant to the bearing surfaces to ensure proper lubrication during operation.

4.Position the Bearings:

Place the inner and outer rings of the cross tapered roller bearings in their designated positions within the assembly.

5.Align the Bearings:

Ensure the bearings are correctly aligned. You may use a dial indicator for precise alignment if needed.

6.Press the Bearings In:

Use a hydraulic press or specialized bearing installation tools to press the bearings into their designated seats or bores. Apply even pressure to prevent damage to the bearings.

Utilize an appropriate adapter or sleeve to evenly distribute the force during installation.

7.Check for Proper Fit:

After installation, check the bearings for any signs of misalignment or binding. The bearings should move smoothly without any play.

8.Secure Bearings in Place:

Secure the bearings in their designated positions using locking mechanisms such as locking plates, locknuts, or retaining rings, depending on the design.

9.Tighten Fasteners to Specified Torque:

If the installation involves securing the bearings with fasteners, use a torque wrench to tighten them to the manufacturer's specified torque values. Proper preload is essential, and over-tightening should be avoided.

10.Verify Axial and Radial Clearance:

Measure and verify the axial and radial clearances of the bearings using appropriate measuring tools. These clearances are critical for the bearings' proper operation.

11.Recheck Alignment:

Double-check the alignment of the bearings to ensure they are correctly positioned and aligned with the shaft and housing.

12.Final Lubrication:

Apply the final lubrication according to the manufacturer's recommendations, taking into account the application's operating conditions.

13.Test Rotation:

Rotate the assembly to ensure that the bearings operate smoothly and without any unusual noise or resistance.

14.Seal and Protect:

Install suitable seals or shields to protect the bearings from contamination and environmental factors.

15.Document Installation:

Maintain records of the installation process, including torque values, clearances, and any other relevant information.


Company:Luoyang EFANT Precision Bearing Manufacturing Co. Ltd

Address:No. 9 Jingjin North Rd, Luoxin Development Zone,

Xin'an County, Luoyang City, Henan Province 471003, China
