Unlocking the Potential of Automation: A Deep Dive into Air Bearings

Resource from: Likes:193
Sep 21,2023


In today’s fast-evolving world of automation, components that may seem minuscule can hold the key to monumental advancements.

Enter air bearings. Not only do they represent a revolutionary way to handle motion, but they also hold the potential to redefine efficiency and precision in the automation sector.

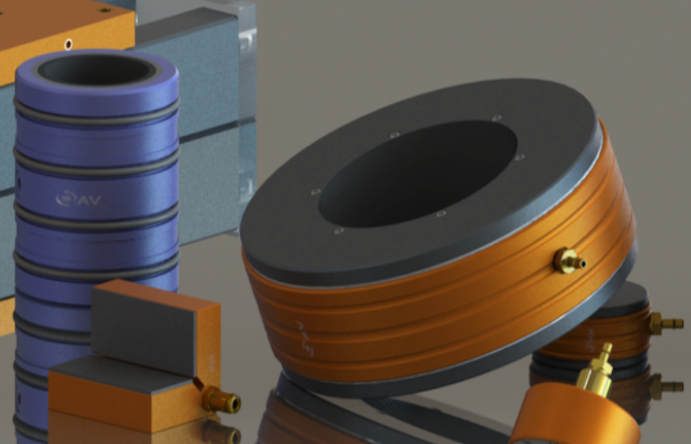

What are air bearings?

Air bearings, often termed as fluid film bearings, are a type of bearing that utilizes a thin layer of pressurized gas, mainly air, to create a virtually frictionless load-bearing interface between two surfaces.

The essence of their operation lies in the expulsion of air through an orifice, generating a film of air thick enough to separate the surfaces and allow relative motion without direct contact.

Why are air bearings important in the automation industry?

The automation industry thrives on accuracy, speed, and efficiency, and here’s where air bearings shine:

Near-zero friction, promoting smoother movements

Absence of physical contact eliminates wear and tear

Enhanced precision ensures accurate task execution

Cleaner operations as no lubricants are required, reducing contamination risks

Long-lasting with reduced maintenance demands

How do air bearings function?

At the core of air bearings is the basic principle of fluid dynamics. When air is forced through an orifice under pressure, it creates a film capable of supporting significant loads while ensuring that the bearing surfaces remain separate.

Pressurized air is introduced through the orifice.

A film of air forms, separating the bearing surfaces.

The pressure distribution prevents the surfaces from making contact.

The continuous supply of air maintains the separation, allowing for relative motion.

What are the main components of an air bearing?

The anatomy of an air bearing is intricate yet fascinating:

Orifice: The channel through which air is directed.

Bearing Surface: The surface that rides on the air film.

Air Chamber: The section that holds the pressurized air before it’s expelled.

How is the air supplied to the bearings?

Supplying air to the bearings is often achieved via compressors or external pressurized tanks. The choice depends on factors such as load capacity, desired precision, and the specific application.

Are there different types of air supply methods?

Indeed, variations include centralized air supply systems, decentralized systems, and dedicated compressors for individual bearings.

What are the main types of air bearings used in automation?

Aerostatic bearings

Operate by maintaining a continuous supply of pressurized air. They offer extreme precision, making them ideal for applications requiring meticulous accuracy.

Aerodynamic bearings

Rely on the relative motion between the bearing surfaces to generate the required air film. They are self-acting and are well-suited for high-speed applications.

Orifice-compensated bearings

Utilize multiple orifices to distribute air, enhancing stability and load capacity.

Porous media air bearings

Feature porous surfaces that evenly distribute air, ensuring a stable and consistent air film.

What are the advantages of using air bearings in automation?

Near-zero friction: Ensures smooth motion.

No wear and tear: Increases component lifespan.

High precision: Essential for detailed tasks.

Clean operation: Minimized contamination risks.

How do air bearings compare to traditional bearings?

Air bearings vs. Ball bearings

While ball bearings are cost-effective and versatile, they suffer from wear and friction, unlike air bearings which offer superior precision and longevity.

Air bearings vs. Roller bearings

Air bearings outperform roller bearings in terms of precision and smoothness, though roller bearings have higher load capacities.

Air bearings vs. Magnetic bearings

Both are frictionless, but air bearings are more energy-efficient, while magnetic bearings can be more complex to integrate.

What are the limitations and challenges of air bearings?

Sensitivity to surface imperfections

Dependence on a continuous air supply

Potential heat generation at high speeds
