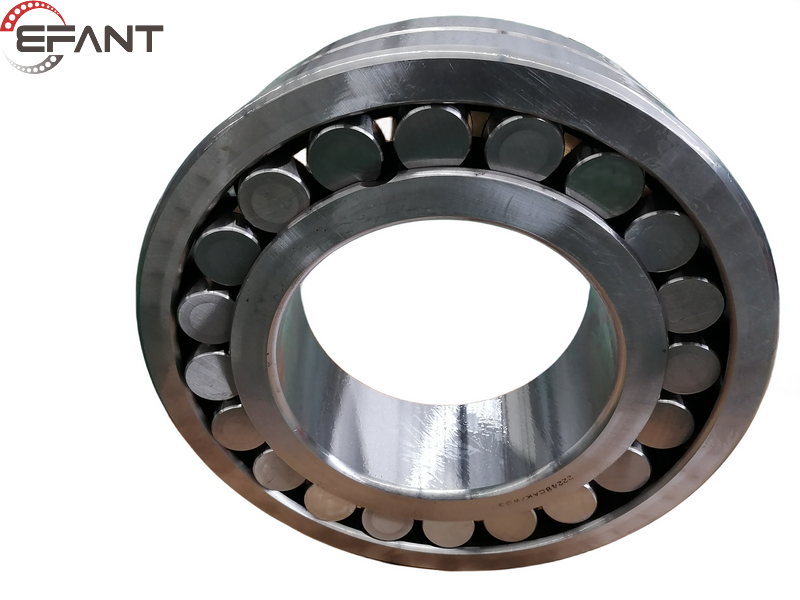

What are the methods for installing spherical roller bearings?

Resource from:  CBCC Likes:89
Dec 26,2023

What are the methods for installing spherical roller bearings?


Installing spherical roller bearings requires precision and attention to detail to ensure proper functioning and longevity. Here are common methods for installing spherical roller bearings:

1.Cold Mounting:

Manual Method: In cases where the bearing fits are not too tight, you can manually slide the bearing onto the shaft or into the housing. Ensure proper alignment and take care not to damage the bearing components.

Using a Press: Hydraulic or mechanical presses can be employed to apply force evenly on the inner or outer ring, facilitating installation.

2.Hot Mounting:

Induction Heating: Heat the bearing using an induction heater to expand the inner ring, making it easier to slide onto the shaft. This method is suitable for interference fits.

Oil Bath: Immerse the bearing in hot oil to achieve the required expansion for mounting. This method is commonly used for larger bearings.

3.Hydraulic Mounting:

Use a hydraulic nut or similar device to apply controlled pressure for mounting the bearing. This method is suitable for achieving precision and control during the installation process.

4.Thermal Methods:

Freezing: In some cases, freezing the bearing before installation can shrink the component, allowing for easier fitting.

Dry Ice: Similar to freezing, using dry ice can provide temporary shrinkage for easier installation.

5.Mechanical Tools:

Adapter Sleeves: These sleeves are mounted on a shaft to facilitate the installation of bearings with tapered bores.

Locknuts and Lockwashers: Secure the bearing onto a shaft using locknuts and lockwashers, ensuring a tight fit.

6.Use of Interference Fits:

Selecting an interference fit involves a tight connection between the bearing and the shaft or housing. Care should be taken to avoid excessive force that could damage the bearing.

7.Alignment Tools:

Use alignment tools, such as feeler gauges, to ensure proper alignment between the bearing and mating components.

8.Professional Installation Tools:

Depending on the application and bearing size, specialized tools like bearing pullers, mounting plates, and hydraulic equipment may be used for efficient and safe installation.

Before proceeding with any method, it's essential to refer to the manufacturer's guidelines and recommendations specific to the spherical roller bearing model you are working with. Additionally, follow proper safety precautions, and if you're unsure or inexperienced, consider seeking guidance from a professional technician or engineer. Proper installation is crucial for the performance and longevity of spherical roller bearings.
