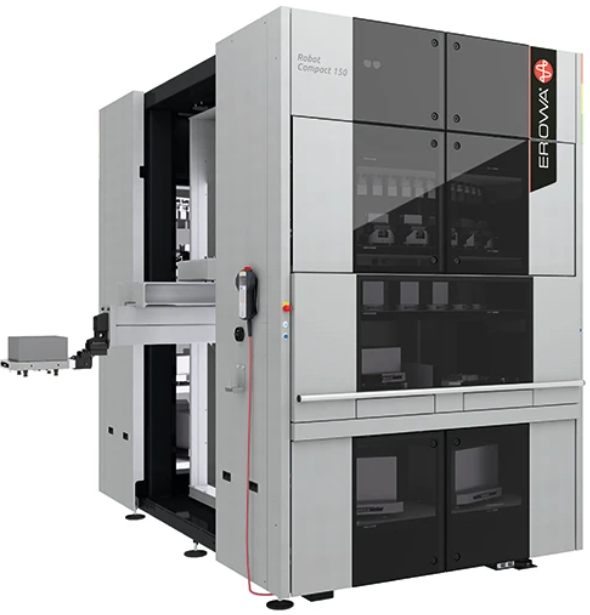

EROWA ROBOT COMPACT 150
The new EROWA Robot Compact 150 is the logical addition to the EROWA automation portfolio and impresses with its wide range of functions. It is the perfect automation solution for flexible loading of up to two production machines of all processing technologies - from milling to EDMing. Due to its innovative design, the ERC 150 offers impressive magazine capacity with a small footprint while maintaining a transfer weight of up to 150kg.
Easy to operate
The optional pull-out magazine levels ensure convenient loading and unloading of the workpiece carriers directly into the magazine. Thanks to the EROWA EWIS chip identification system in combination with the presence sensor, the operator always has a quick overview of the loading of all magazine locations, which significantly increases process reliability and efficiency.
Ergonomic loading station for heavy workpieces
The optional loading station can be integrated to save space. It makes it possible to set up large and heavy palletized workpieces at an ergonomic height while the robot is operational. An indexing system enables convenient set-up (4x90° rotation) and locks the pallet automatically when it engages. It also ensures that the pallets do not end up misaligned in the magazine.
Expandable magazine capacity and versatility
The magazine capacity of the Robot Compact 150 is flexible and can be expanded considerably. The magazine levels can be individually adjusted depending on the workpiece size and enable flexible and efficient use of the space available in the unit. Options such as a third rack magazine or an additional rotary magazine offer solutions for every production environment. The device is capable of handling workpieces of different sizes and heights - from small (70x70mm) EROWA ITS electrode holders to large MTS 400 pallets and part heights of up to 400mm.
Technical details and specs
With a footprint of just 4.7m2 and a transfer weight of up to 150kg, the Robot Compact 150 offers an extra-long reach of the X-axis. Two independent X-axis drives enable fast magazine handling and a large magazine capacity with an X-axis travel of 1458mm. The space-saving grip-per trays and the innovative Gripper+ technology (sensor system) ensure maximum flexibility and process reliability.
