TELEDYNE HIREL SEMICONDUCTORS' WIDEBAND 50 GHZ RF SWITCH

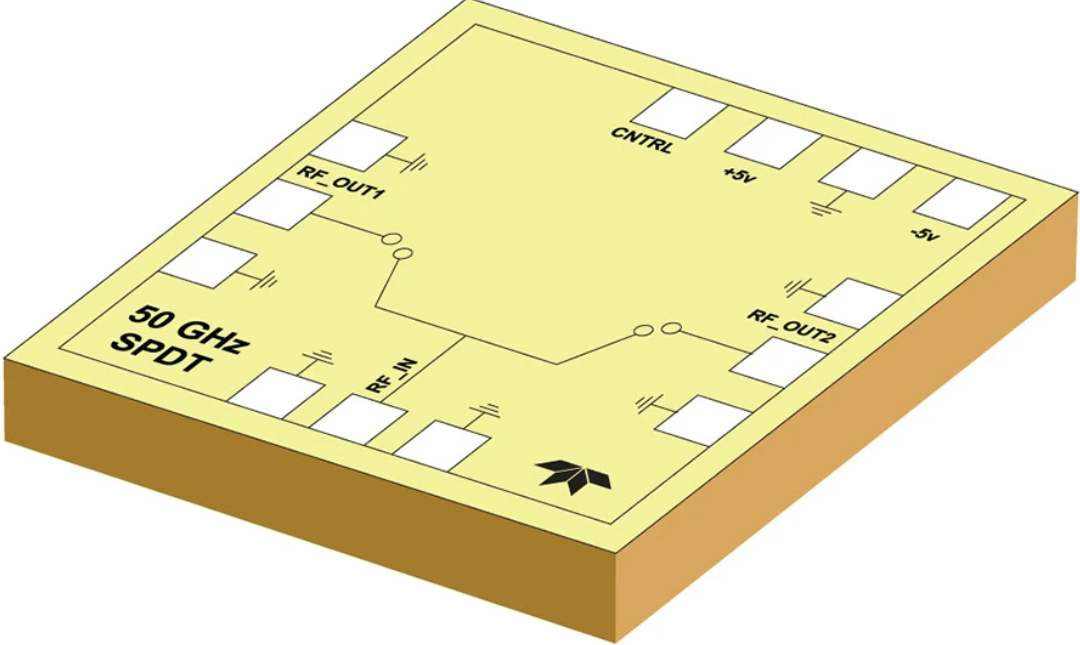

Teledyne HiRel Semiconductors announces the availability of its latest rad-tolerant wideband 50 GHz RF switch, model TDSW050A2T. This switch operates from true DC to 50 GHz, delivering excellent RF performance down to zero Hertz, making this device ideal for many of today’s complex space and defense applications. It has been developed in a 150nm pseudomorphic High Electron Mobility Transistor (pHEMT) Indium Gallium Arsenide (InGaAs) process and is available in a 1.15mm x 1.47mm x 0.1mm die ideal for hybrid assembly products. It is qualified to an extended temperature range of –40⁰C to 85⁰C per MIL-PRF-38534 Class K equivalency for space applications and is available for immediate shipment. The TDSW050A2T leverages monolithic microwave integrated circuit (MMIC) design techniques that delivers superior performance across frequencies up to millimeter wave bands. The RF switch delivers low insertion loss, high isolation, fast switching times, and high linearity across a wide frequency band from DC to 50GHz. It attains an input power 1dB compression of 23dBm (typical) and supports 23dB of port isolation at 50GHz. It operates with ±5V power supplies with minimal DC power consumption and is controlled with TTL-compatible voltage levels. The RF Switch is TID radiation tolerant to 100krad (Si), making it an excellent choice for satellite systems. Class K equivalent element evaluation is performed per wafer. “Today, we’re releasing our latest wideband RF Switch for K bands and beyond,” says Mont Taylor, Vice President and Business Development Manager at Teledyne HiRel. “To meet the higher operating frequencies associated with many of today’s high reliability systems, this RF switch supports operation from true DC out to 50GHz making it an ideal solution for space, military, and defense applications.” The TDSW050A2T devices are available for order and shipment today, from Teledyne HiRel Semiconductors or an authorized distributor. They are shipped from our DoD Trusted Facility in Milpitas, California.
