Description:

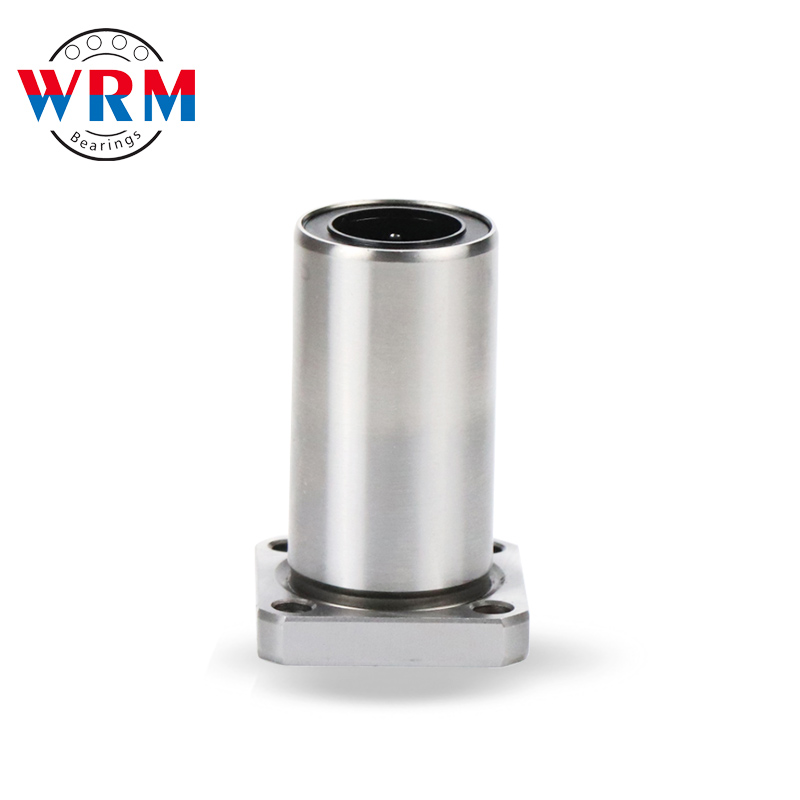

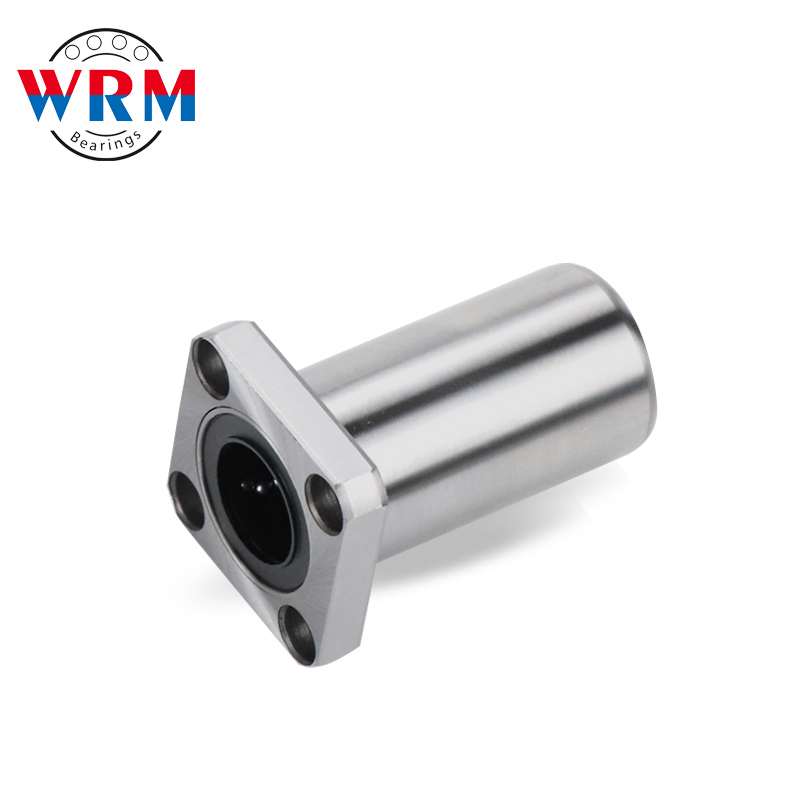

Product Name	Linear bearing
Material	Chrome Steel
Place of Origin	Jiangsu,China(Mainland)
Feature	Low friction, high precision, fast speed
Servives	Non-standard customized,OEM

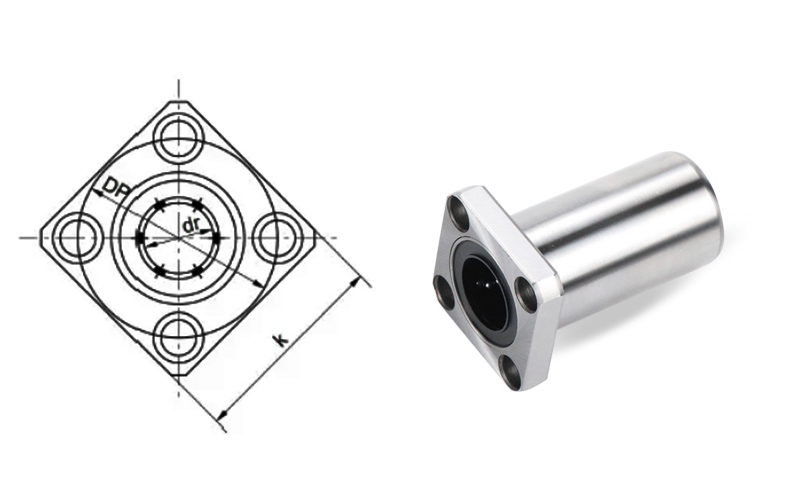

Model NO.	Dimensions			NO.of ball rows	Basic Load Ratings		weight g
	d	D	L		CN	CON
LMK6UU	6	12	19	6	200	260	26.5
LMK8UU	8	15	17	4	170	220	34
LMK8UU	8	15	24	4	260	400	40
LMK10UU	10	19	29	4	370	540	78
LMK12UU	12	21	30	4	410	590	76
LMK13UU	13	23	32	4	500	770	94
LMK16UU	16	28	37	5	770	1170	134
LMK20UU	20	32	42	5	860	1370	180
LMK25UU	25	40	59	6	980	1560	340
LMK30UU	30	45	64	6	1560	2740	460
LMK35UU	35	52	70	6	1660	3130	795
LMK40UU	40	60	80	6	2150	4010	1054
LMK50UU	50	80	100	6	3820	7930	2200
LMK60UU	60	90	110	6	4700	9990	2960
LMK80UU	80	120	140	6	7350	16000	5800
LMK100UU	100	150	175	6	14100	34800	10600

Wuxi Nengli Bearing Co., LTD., WRM , was founded in 2002 and is located in Wuxi, a developed city on the southeast coast of China. WRM has over 20 years of manufacturing and marketing experience in researching and manufacturing bearings. On this basis, we become a leading manufacturer of deep groove ball bearings, self-aligning roller bearings, tapered roller bearings, angular contact ball bearings and other bearing products. WRM specializes in the research and development of high precision, low noise, long life bearings, high quality bearings and other mechanical and transmission products. The products have mature technology, high precision, low noise, long life, reliability, some of our products have been included in the national key new products. Our factory can supply all kinds of non-standard and special bearings according to customers requirement. WRM always adheres to the spirit of quality first, integrity first. We sincerely welcome customers to cooperate with us for mutual benefit. We will try our best to provide high quality products, competitive prices, excellent service, timely delivery for every customer.
