Description:

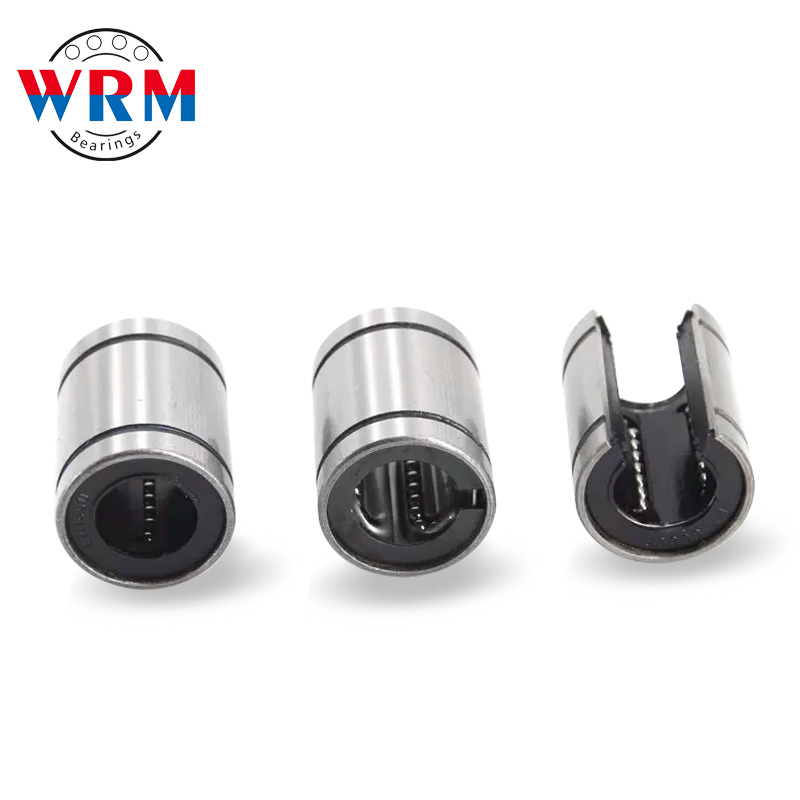

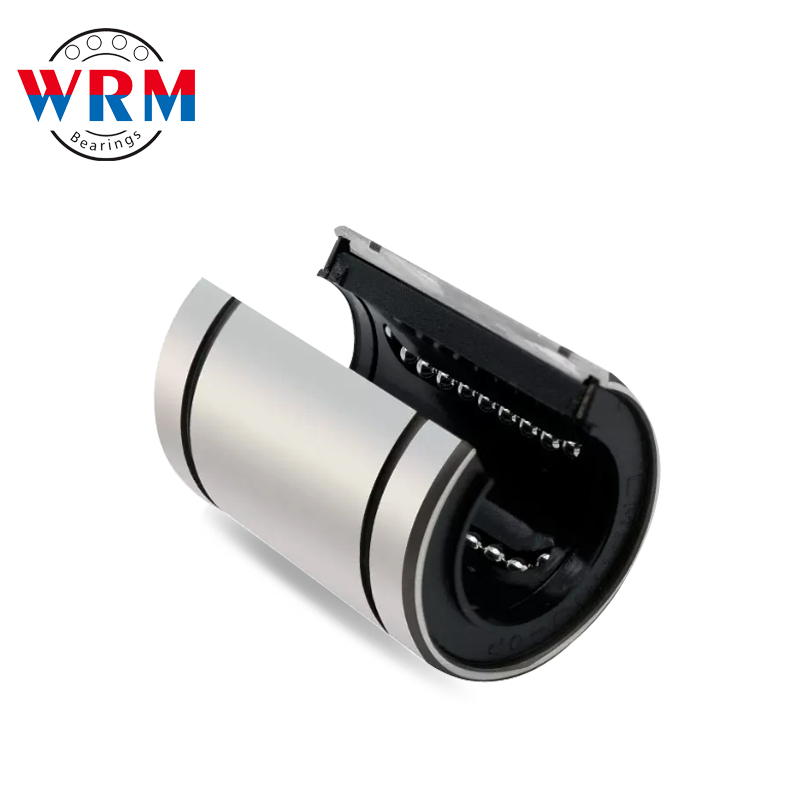

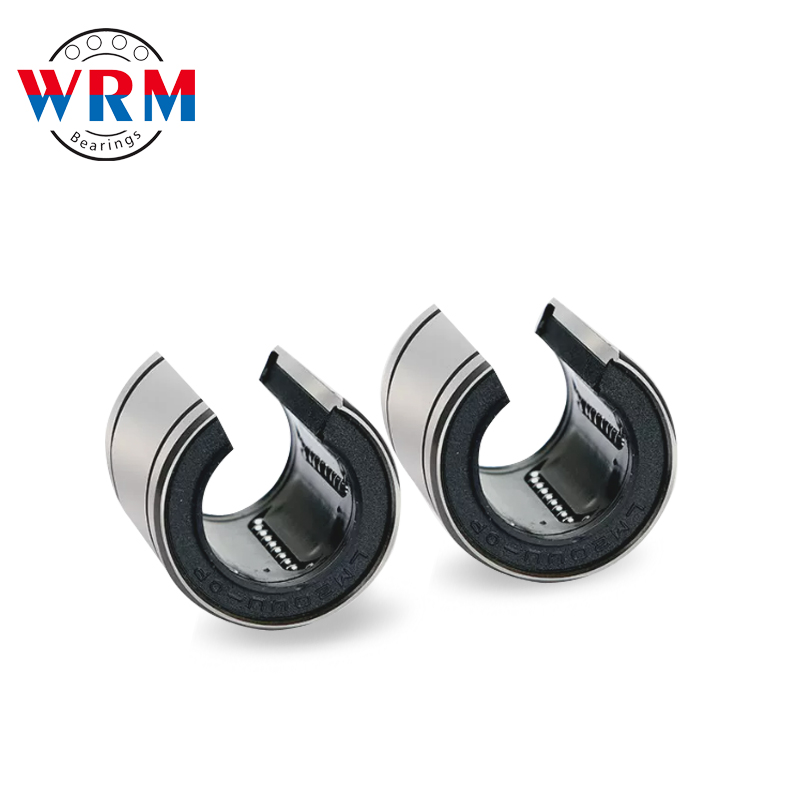

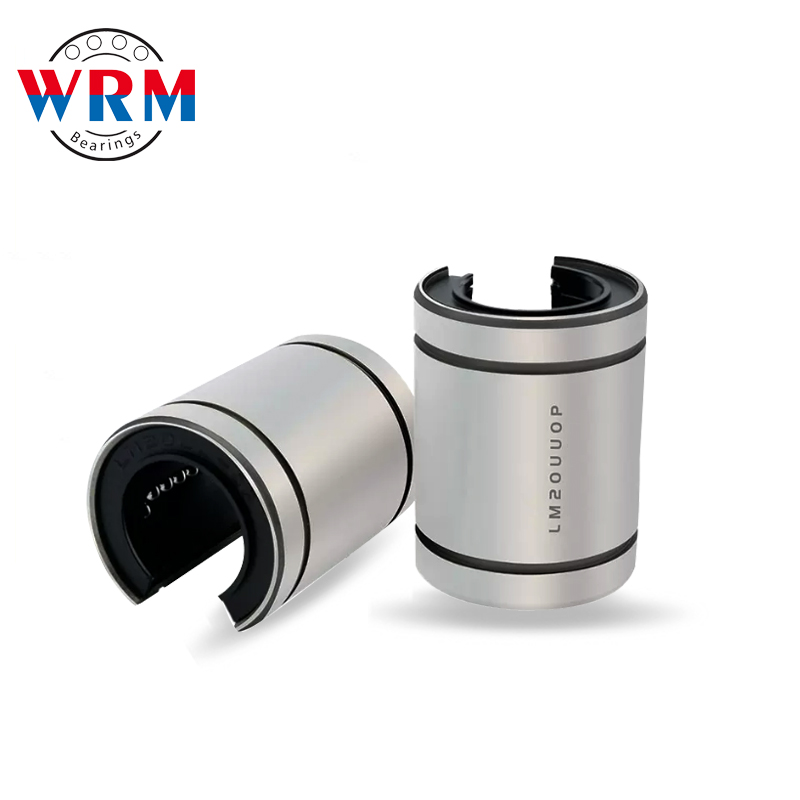

Product Name	Linear bearing
Material	Chrome Steel
Place of Origin	Jiangsu,China(Mainland)
Feature	Low friction, high precision, fast speed
Servives	Non-standard customized,OEM

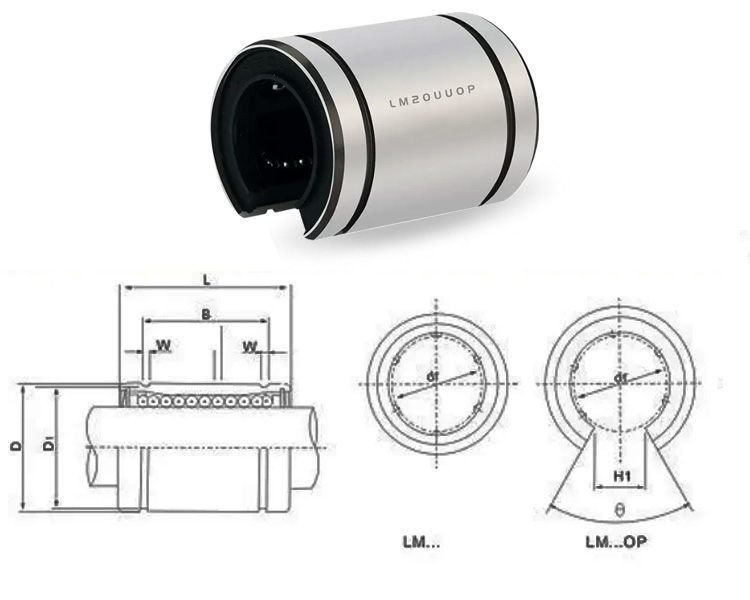

Model NO.	Dimensions						NO.of ball rows	Basic Load Ratings		Weight kg
	d	D	L	B	W	D1		CN	CON
LM12-OP	21	21	30	23	1.3	20	3	42	60	0.012
LM16-OP	28	28	37	26.5	1.6	27	3	51	78	0.016
LM20-OP	20	32	42	30.5	1.6	30.5	4	78	119	0.02
LM25-OP	25	40	59	41	1.85	38	4	88	140	0.025
LM30-OP	30	45	64	44.5	1.85	43	5	100	159	0.03
LM35-OP	35	52	70	49.5	2.1	49	5	159	279	0.035
LM40-OP	40	60	80	60.5	2.1	57	5	219	319	0.04
LM50-OP	50	80	100	74	2.6	76.5	5	389	808	0.05

Wuxi Nengli Bearing Co., LTD., WRM , was founded in 2002 and is located in Wuxi, a developed city on the southeast coast of China. WRM has over 20 years of manufacturing and marketing experience in researching and manufacturing bearings. On this basis, we become a leading manufacturer of deep groove ball bearings, self-aligning roller bearings, tapered roller bearings, angular contact ball bearings and other bearing products. WRM specializes in the research and development of high precision, low noise, long life bearings, high quality bearings and other mechanical and transmission products. The products have mature technology, high precision, low noise, long life, reliability, some of our products have been included in the national key new products. Our factory can supply all kinds of non-standard and special bearings according to customers requirement. WRM always adheres to the spirit of quality first, integrity first. We sincerely welcome customers to cooperate with us for mutual benefit. We will try our best to provide high quality products, competitive prices, excellent service, timely delivery for every customer.
