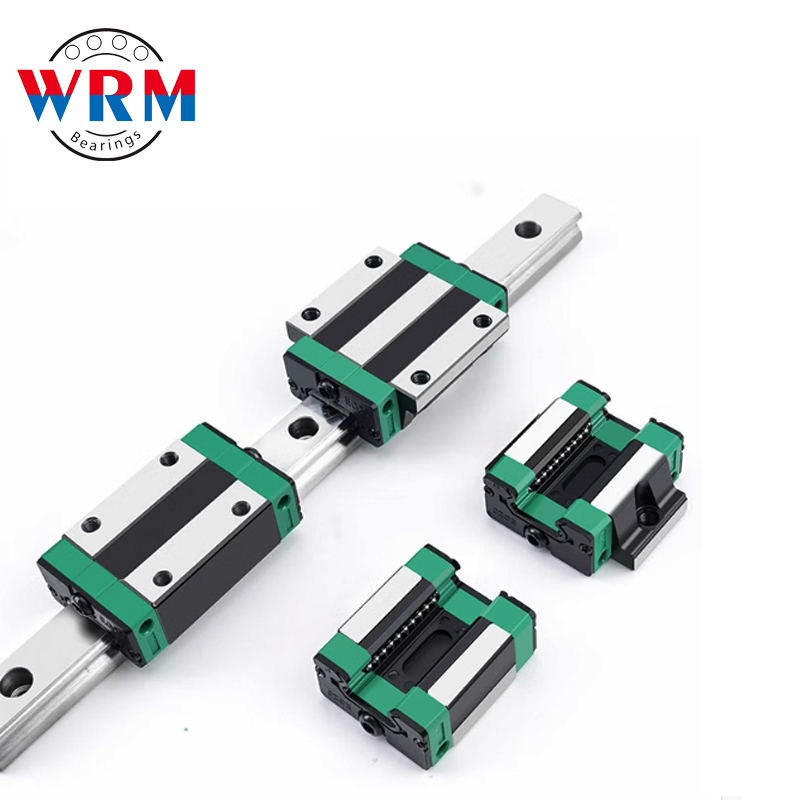

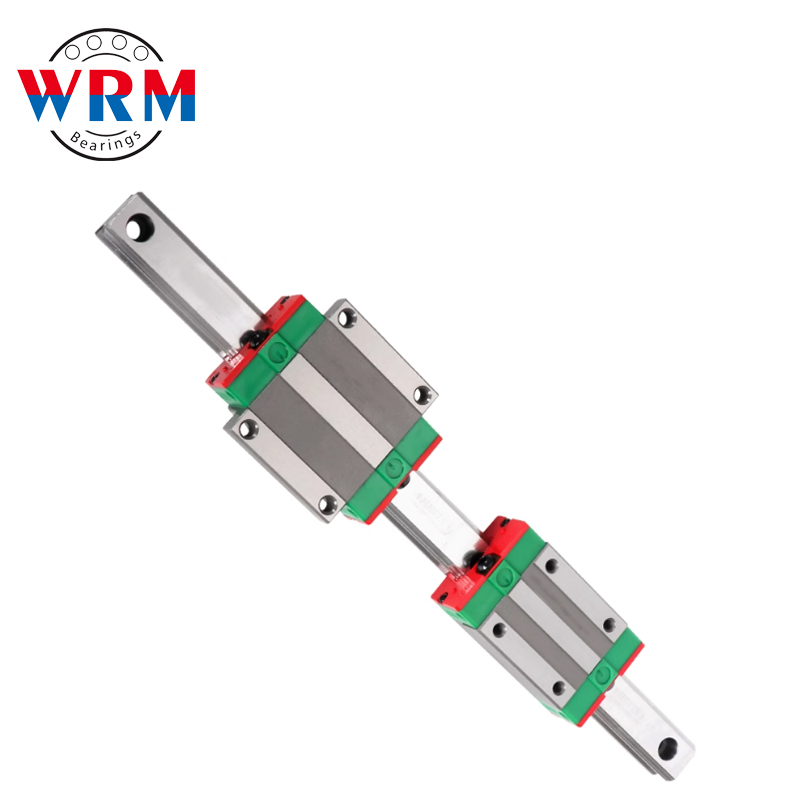

Product Name	Linear guide
Material	Chrome Steel
Place of Origin	Jiangsu,China(Mainland)
Feature	Low friction, high precision, fast speed
Servives	Non-standard customized,OEM

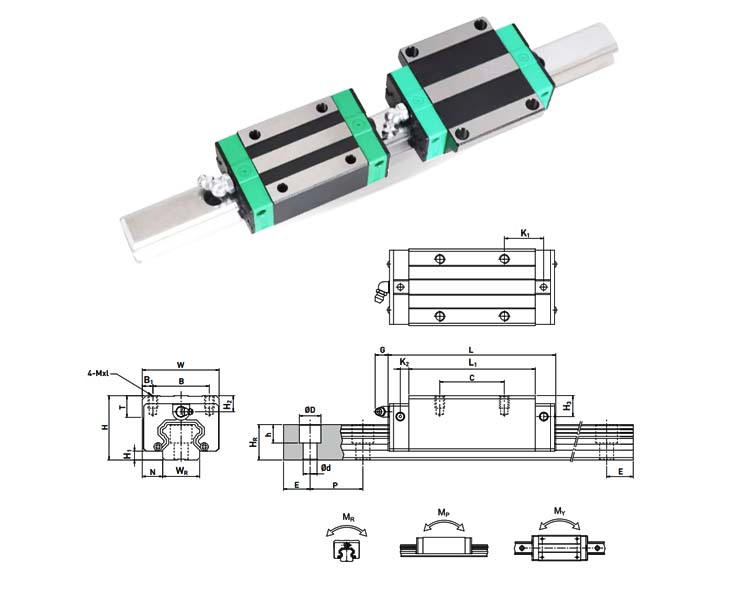

Part	Guide rail size (mm)							Basic load rating		Permissible static moment			Weight
													Kg
										M(R)	M(P)	M(Y)	sliding block	guide rail
	W	H	D	h	d	P	E	Cr/KN	Cor/KN	KN-m	KN-m	KN-m	kg	kg/m
HG15	15	15	7.5	5.3	4.5	60	20	11.38	25.31	0.17	0.15	0.15	0.14	1.45
HG25	23	22	11	9	7	60	20	26.48	56.19	0.64	0.15	0.51	0.42	3.12
HG30	28	26	14	12	9	80	20	38.74	83.06	1.06	0.85	1.85	0.78	4.47
HG35	34	29	14	12	9	80	20	46.25	102.87	1.4	1.2	1.2	1.14	6.3
HG45	45	38	20	17	14	105	22.5	77.57	155.93	3.01	2.35	2.08	2.08	10.41
HG55	53	44	23	20	16	120	30	114.44	227.81	5.66	4.06	4.06	3.25	15.08

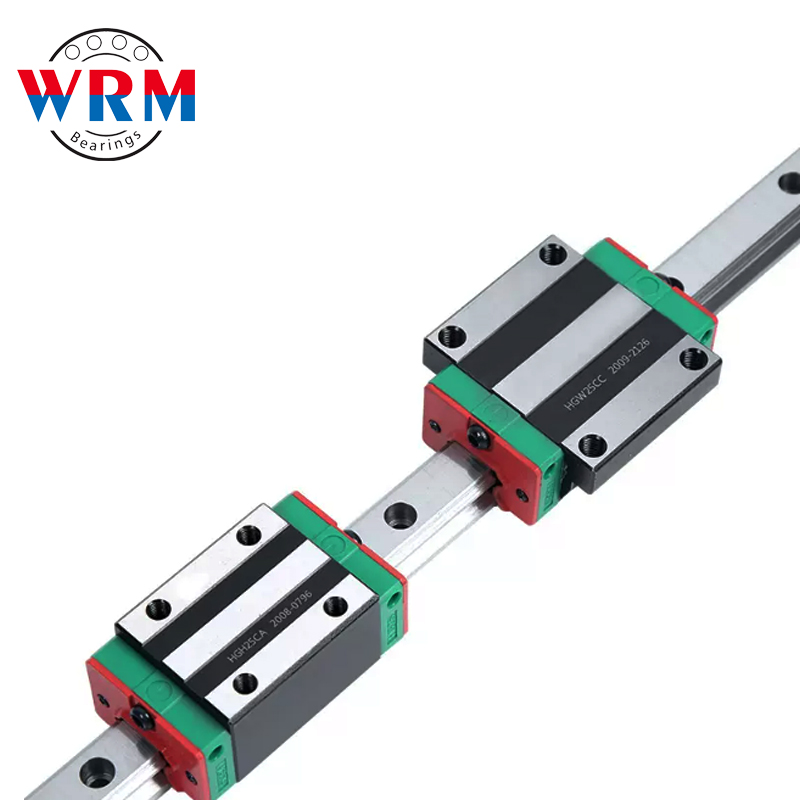

NO.	L	B	Mounting holes	Mounting holes	Combination of	Guide rail
			long	Width	high	mountingscrews
HGH15	61.4	34	26	26	28	M4
HGH20	77.5	44	36	32	30	M5
HGH25	84	48	35	35	40	M6
HGH30	97.4	60	40	40	45	M8
HGH35	112.4	70	50	50	55	M8
HGH45	139.4	86	60	60	70	M12
HGW15	61.4	47	30	38	24	M4
HGW20	77.5	63	40	53	30	M5
HGW25	84	70	45	57	36	M6
HGW30	97.4	90	52	72	42	M8
HGW35	112.4	100	62	82	48	M8
HGW45	139.4	120	80	100	60	M12
