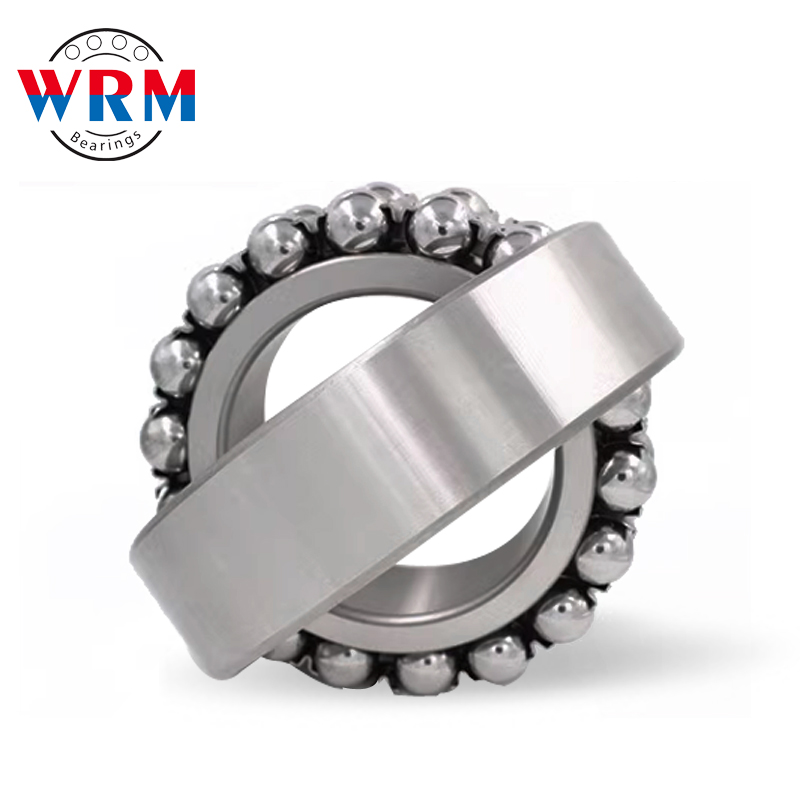

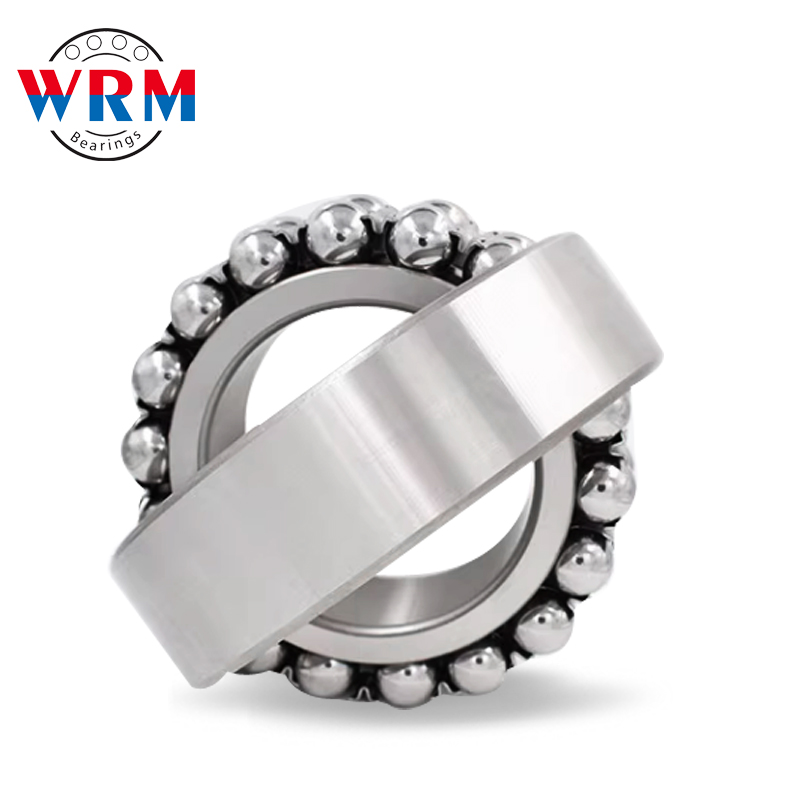

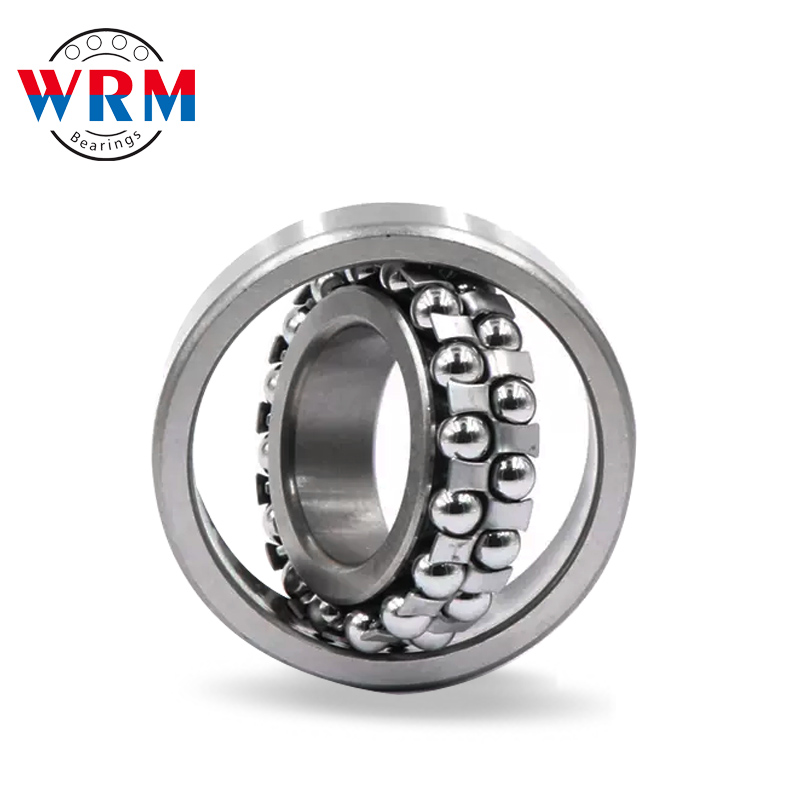

Product name: WRM 2310 Self-aligning Ball Bearing 50*110*40mm
-
-
Price: ASK
-
-
Post date: 2024-06-18
-
-
Stock Quantity: 10000
-
Quantity:
Description:
|
Product Name |
Self-aligning Ball Bearing |
|
Material |
Chrome Steel |
|
Clearance |
C0 C2 C3 C4 |
|
Place of Origin |
Jiangsu,China(Mainland) |
|
Feature |
High precision,High speed,High load capacity,Low noise |
|
Servives |
Non-standard customized,OEM |
| Designation | Principal Dimension | Basic Load Ratings | Speed ratings (r/min) | Weightkg | ||||
| d | D | B | Dynamic | Static | Grease | Oil | ||
| 2300 | 10 | 35 | 17 | 10.1 | 2.15 | 17000 | 20000 | 0.083 |
| 2301 | 12 | 37 | 17 | 11.8 | 2.71 | 15000 | 17000 | 0.091 |
| 2302 | 15 | 42 | 17 | 12 | 2.9 | 13000 | 15000 | 0.114 |
| 2303 | 17 | 47 | 19 | 14.4 | 3.55 | 11000 | 14000 | 0.156 |
| 2304 | 20 | 52 | 21 | 18.1 | 4.7 | 10000 | 12000 | 0.206 |
| 2305 | 25 | 62 | 24 | 24.4 | 6.6 | 8500 | 10000 | 0.334 |
| 2306 | 30 | 72 | 27 | 31.5 | 8.75 | 7200 | 8500 | 0.496 |
| 2307 | 35 | 80 | 31 | 39.5 | 11.3 | 6300 | 7400 | 0.671 |
| 2308 | 40 | 90 | 33 | 45 | 13.5 | 5600 | 6600 | 0.918 |
| 2309 | 45 | 100 | 36 | 54 | 16.7 | 5000 | 5900 | 1.23 |
| 2310 | 50 | 110 | 40 | 64.5 | 20.2 | 4600 | 5400 | 1.63 |
| 2311 | 55 | 120 | 43 | 75.5 | 24 | 4200 | 4900 | 2.1 |
| 2312 | 60 | 130 | 46 | 87 | 28.2 | 3800 | 4500 | 2.59 |
| 2313 | 65 | 140 | 48 | 96 | 32.5 | 3600 | 4200 | 3.2 |
| 2314 | 70 | 150 | 51 | 109 | 37.5 | 3300 | 3900 | 3.92 |
| 2315 | 75 | 160 | 55 | 123 | 43 | 3100 | 3600 | 4.78 |
| 2316 | 80 | 170 | 58 | 128 | 45 | 2900 | 3400 | 5.65 |
| 2317 | 85 | 180 | 60 | 140 | 51.5 | 2700 | 3200 | 6.55 |
| 2318 | 90 | 190 | 64 | 152 | 57.5 | 2600 | 3000 | 7.75 |
| 2319 | 95 | 200 | 67 | 165 | 64.5 | 2400 | 2800 | 9.05 |
| 2320 | 100 | 215 | 73 | 192 | 79 | 2300 | 2700 | 11.5 |
| 2322 | 110 | 240 | 80 | 217 | 94.5 | 2100 | 2400 | 15.8 |
| 2324 | 120 | 260 | 86 | 235 | 105 | 2000 | 2200 | 23.5 |
