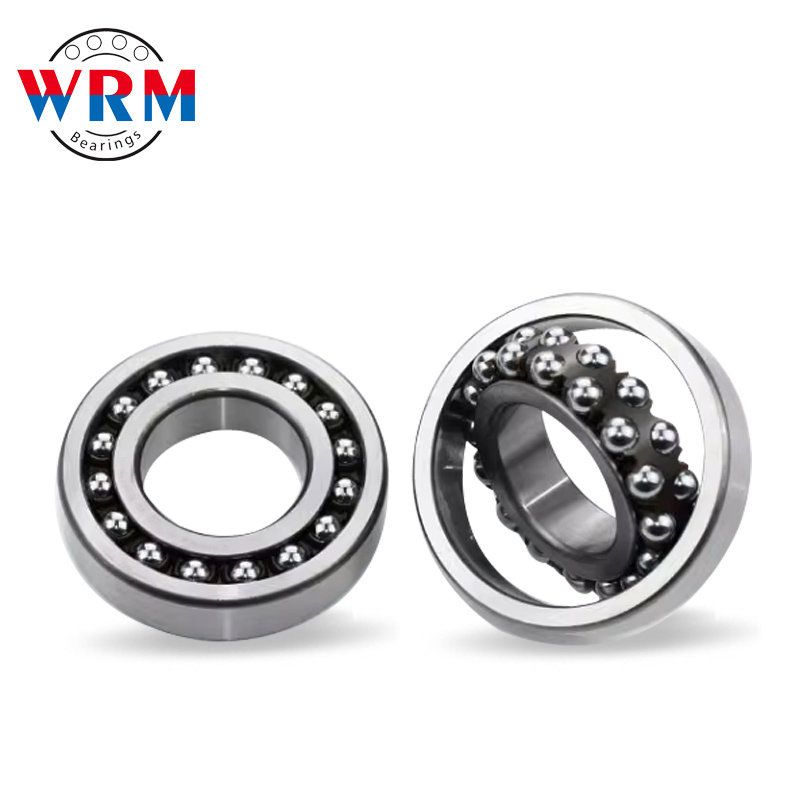

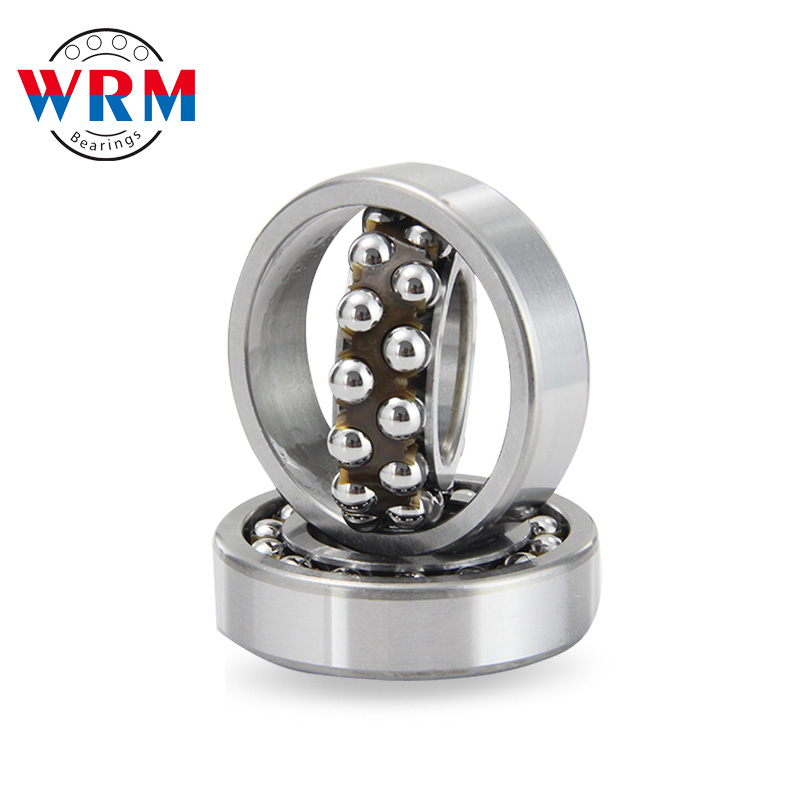

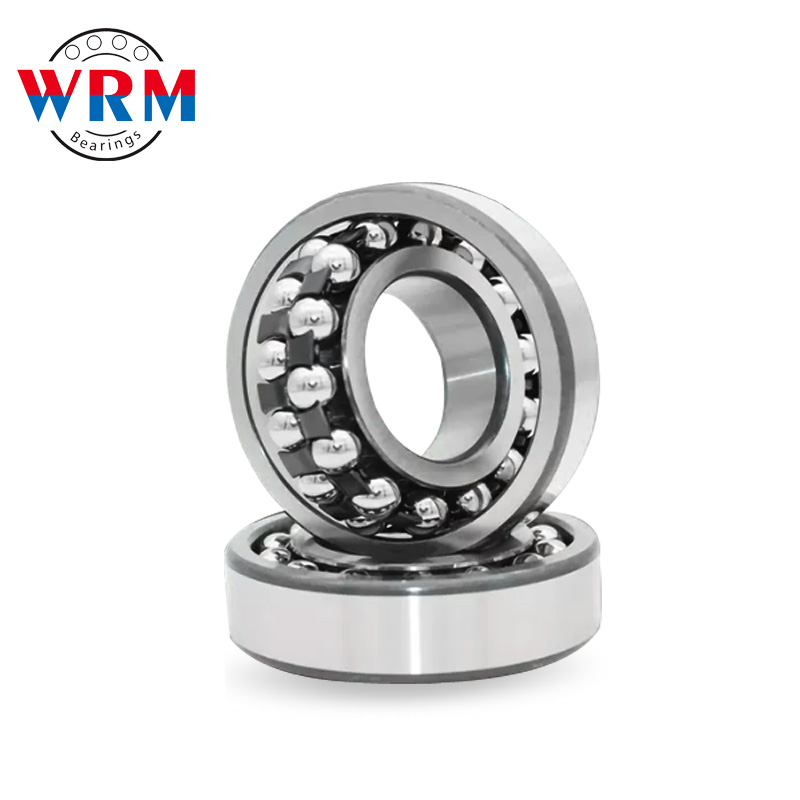

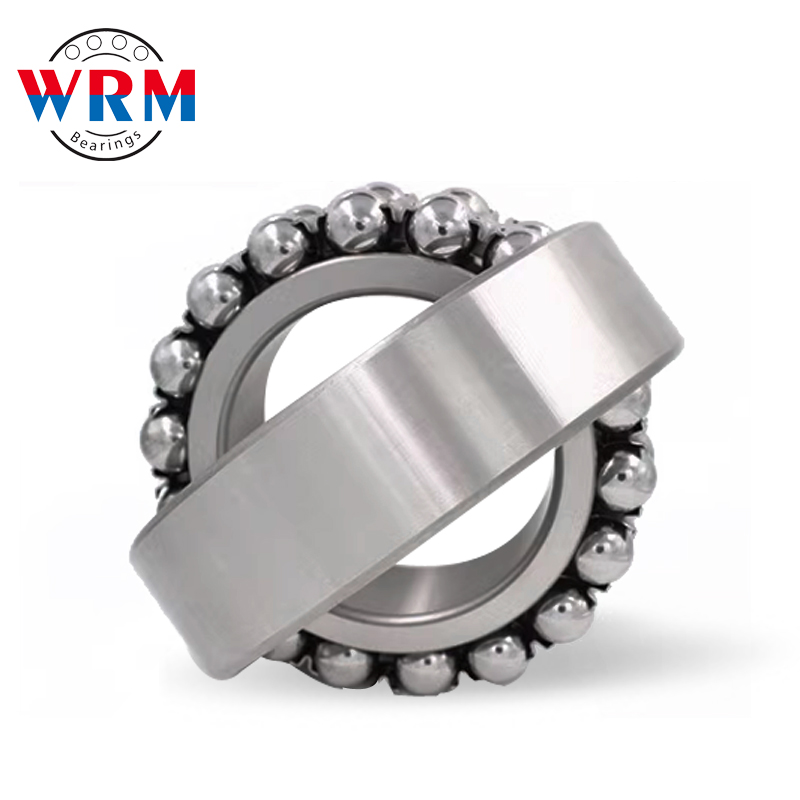

Product name: WRM 2215 Self-aligning Ball Bearing 75*130*31mm
-
-
Price: ASK
-
-
Post date: 2024-06-05
-
-
Stock Quantity: 10000
-
Quantity:
Description:
|
Product Name |
Self-aligning Ball Bearing |
|
Material |
Chrome Steel |
|
Clearance |
C0 C2 C3 C4 |
|
Place of Origin |
Jiangsu,China(Mainland) |
|
Feature |
High precision,High speed,High load capacity,Low noise |
|
Servives |
Non-standard customized,OEM |
| Designation | Principal Dimension | Basic Load Ratings | Speed ratings (r/min) | Weightkg | ||||
| d | D | B | Dynamic | Static | Grease | Oil | ||
| 2200 | 10 | 30 | 14 | 7.3 | 1.59 | 19000 | 23000 | 0.047 |
| 2201 | 12 | 32 | 14 | 7.6 | 1.73 | 17000 | 20000 | 0.051 |
| 2202 | 15 | 35 | 14 | 7.7 | 1.85 | 15000 | 18000 | 0.06 |
| 2203 | 17 | 40 | 16 | 9.8 | 2.41 | 13000 | 16000 | 0.088 |
| 2204 | 20 | 47 | 18 | 12.6 | 3.3 | 12000 | 14000 | 0.14 |
| 2205 | 25 | 52 | 18 | 12.3 | 3.45 | 10000 | 12000 | 0.157 |
| 2206 | 30 | 62 | 20 | 15.2 | 4.5 | 8600 | 10000 | 0.256 |
| 2207 | 35 | 72 | 23 | 21.5 | 6.6 | 7500 | 8800 | 0.392 |
| 2208 | 40 | 80 | 23 | 22.3 | 7.35 | 6700 | 7900 | 0.493 |
| 2209 | 45 | 85 | 23 | 23.2 | 8.15 | 6000 | 7100 | 0.54 |
| 2210 | 50 | 90 | 23 | 23.2 | 8.45 | 5500 | 6400 | 0.583 |
| 2211 | 55 | 100 | 25 | 26.5 | 9.9 | 5000 | 5800 | 0.787 |
| 2212 | 60 | 110 | 28 | 34 | 12.6 | 4600 | 5400 | 1.08 |
| 2213 | 65 | 120 | 31 | 43.5 | 16.4 | 4200 | 5000 | 1.44 |
| 2214 | 70 | 125 | 31 | 44 | 17.1 | 3900 | 4600 | 1.52 |
| 2215 | 75 | 130 | 31 | 44.5 | 17.8 | 3700 | 4300 | 1.58 |
| 2216 | 80 | 140 | 33 | 48.5 | 19.9 | 3400 | 4000 | 1.99 |
| 2217 | 85 | 150 | 36 | 58 | 23.6 | 3200 | 3800 | 2.54 |
| 2218 | 90 | 160 | 40 | 70 | 28.7 | 3100 | 3600 | 3.19 |
| 2219 | 95 | 170 | 43 | 83.5 | 34.5 | 2900 | 3400 | 3.89 |
| 2220 | 100 | 180 | 46 | 94 | 38.5 | 2700 | 3200 | 4.65 |
| 2222 | 110 | 200 | 53 | 124 | 51.5 | 2500 | 2900 | 7.1 |
| 2224 | 120 | 215 | 69 | 145 | 75.6 | 2200 | 2500 | 9.15 |
