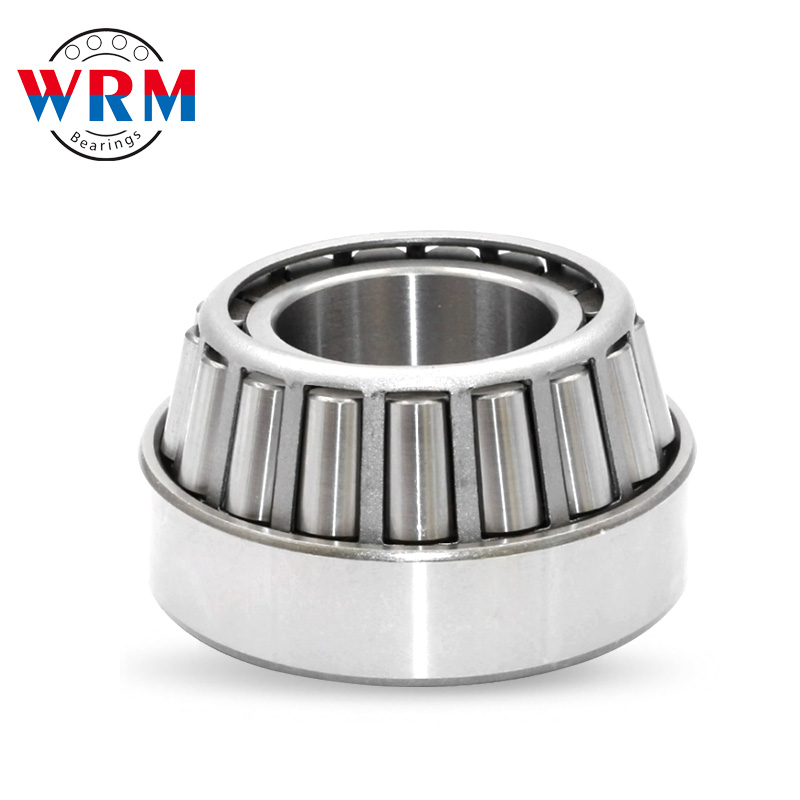

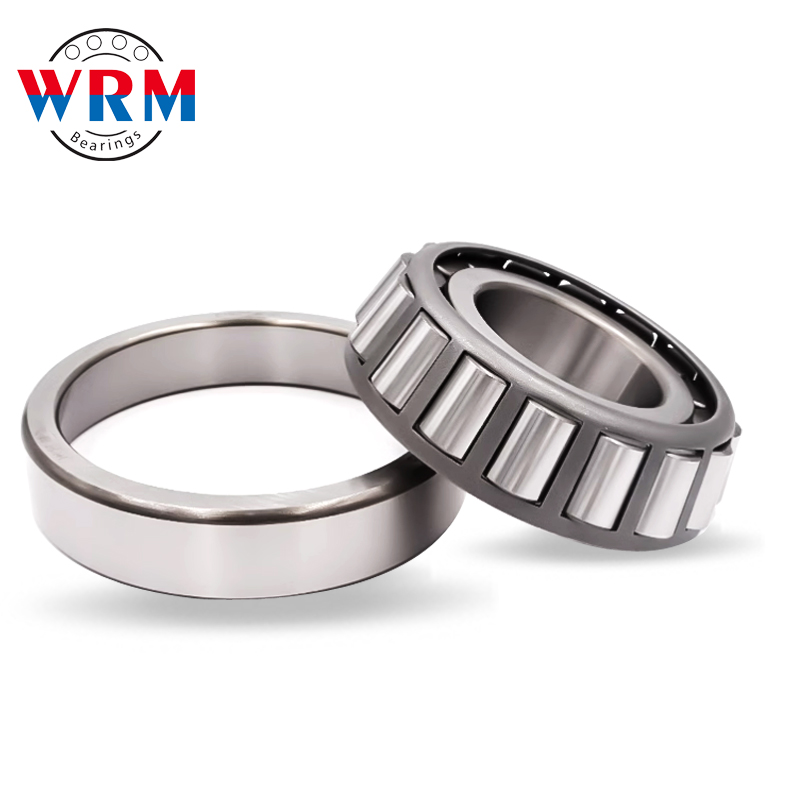

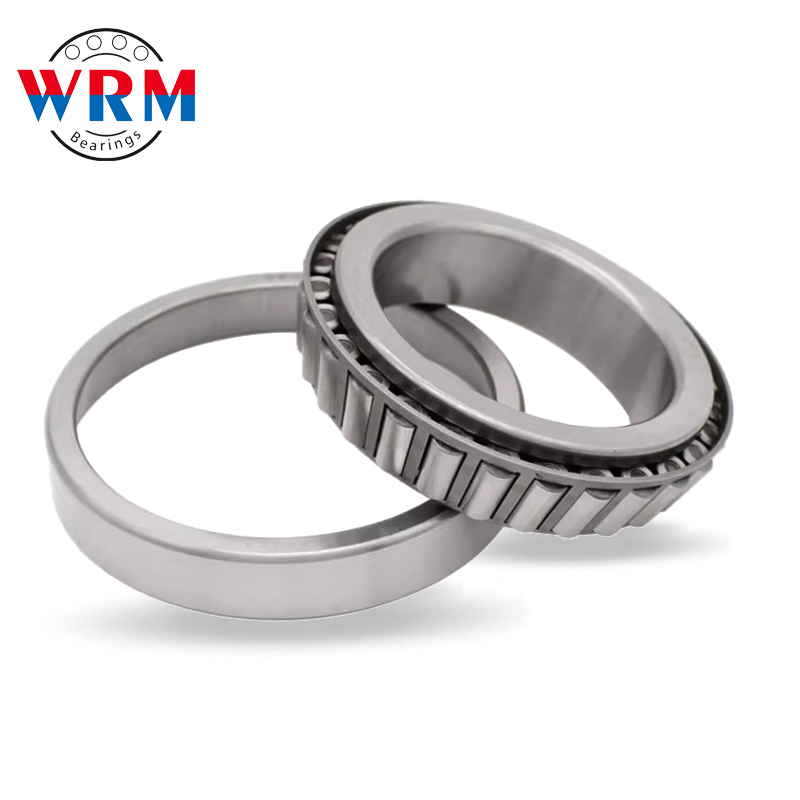

WRM 30212 Taper Roller Bearing 60*110*22mm

  • Product name:  WRM 30212 Taper Roller Bearing 60*110*22mm

  • Price:  ASK
  • Post date:  2024-06-11
  • Stock Quantity:  10000
  • Quantity:

  • Send Inquiry
Description:

Product Name

Tapered Roller Bearings

Material

Chrome Steel

Clearance

C0 C2 C3 C4

Place of Origin

Jiangsu,China(Mainland)

Feature

High precision,High speed,High load capacity,Low noise

Servives

Non-standard customized,OEM

Designation Principal Dimension Basic Load RatingsKN Speed ratings(r/min) Weight
d D B Dynamic Static Grease Oil kg
30201 12 32 12 12.3 10.2 14000 16000 0.009
30202 15 35 11 14.9 13.4 12000 16000 0.053
30203 17 40 12 20.8 21.8 9000 12000 0.079
30204 20 47 14 28.2 30.5 8000 10000 0.126
30205 25 52 15 32.2 37 7000 9000 0.154
30206 30 62 17.5 43.2 50.5 6000 7500 0.231
30207 35 72 17 54.2 63.5 5300 6700 0.331
30208 40 80 18 63 74 5000 6300 0.422
30209 45 85 19 67.8 83.5 4500 5600 0.474
30210 50 90 20 73.2 92 4300 5300 0.529
30211 55 100 21 90.8 115 3800 4800 0.713
30212 60 110 22 102 130 3600 4500 0.904
30213 65 120 23 120 152 3200 4000 1.13
30214 70 125 24 132 175 3000 3800 1.26
30215 75 130 25 138 185 2800 3600 1.36
30216 80 140 26 160 212 2600 3400 1.67
30217 85 150 31 178 238 2400 3200 2.06
30218 90 160 30 200 270 2200 3000 2.54
30219 95 170 32 228 308 2000 2800 3.04
30220 100 180 34 255 350 1900 2600 3.72
30221 105 190 36 285 398 1800 2400 4.38
30222 110 200 38 315 445 1700 2200 5.21
30224 120 215 40 338 482 1500 1900 6.2
30226 130 230 40 365 520 1400 1800 6.94
30228 140 250 42 408 585 1200 1600 8.73
30230 150 270 45 450 645 1100 1400 10.8
30232 160 290 48 512 738 1000 1400 13.3
30234 170 310 52 590 865 1000 1300 16.6
30236 180 320 52 610 912 900 1200 17.3
30238 190 340 55 698 1030 850 1100 20.8
30240 200 360 58 685 972 940 1200 25.6
30244 220 400 73 1010 1440 830 1100 35.5
30248 240 440 79 1230 1790 730 980 46.4
30260 300 540 85 1510 2360 550 730 84.7
