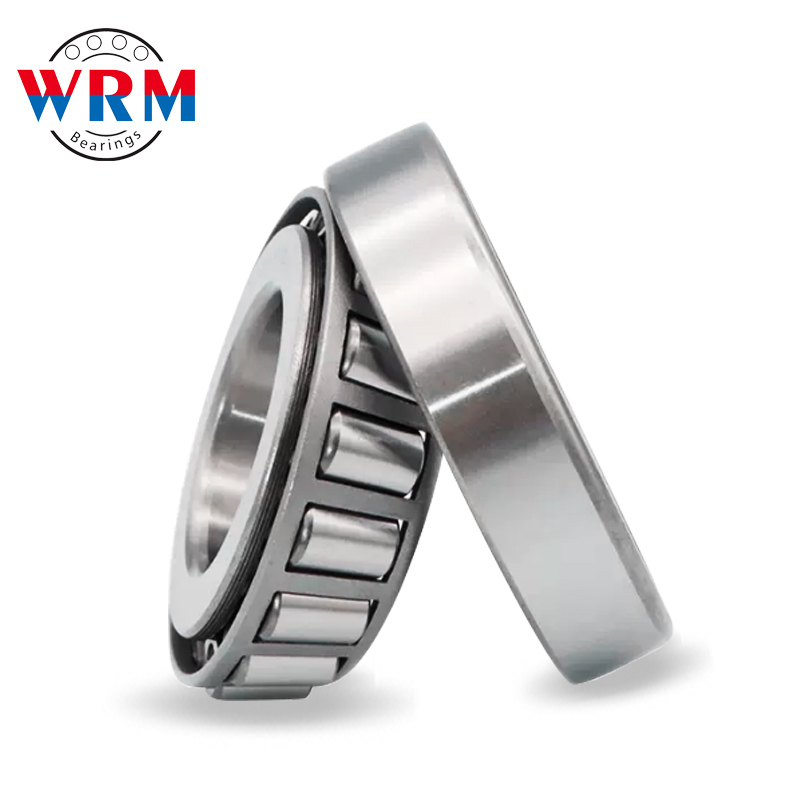

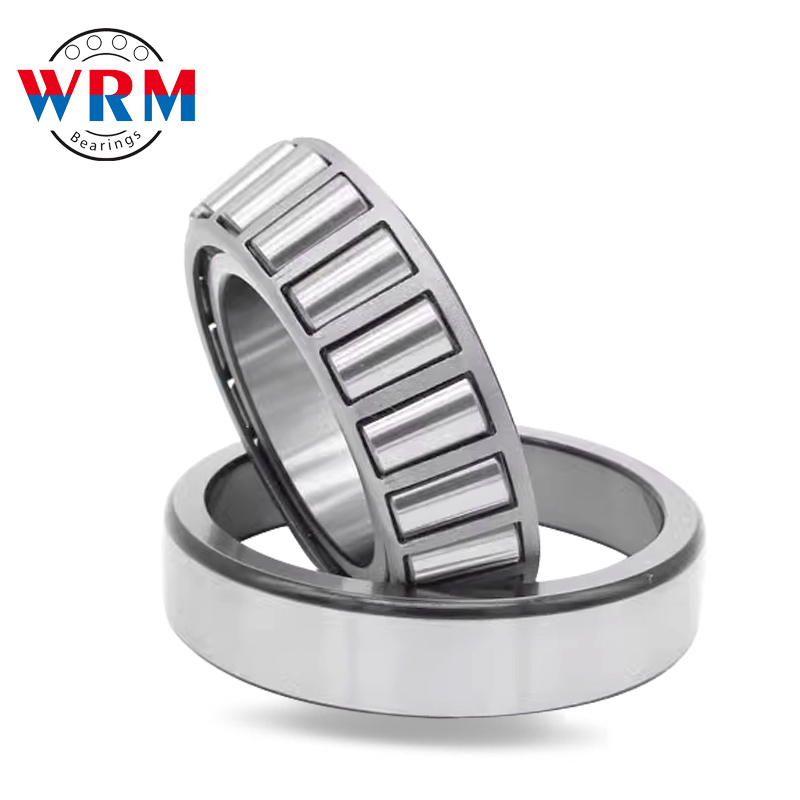

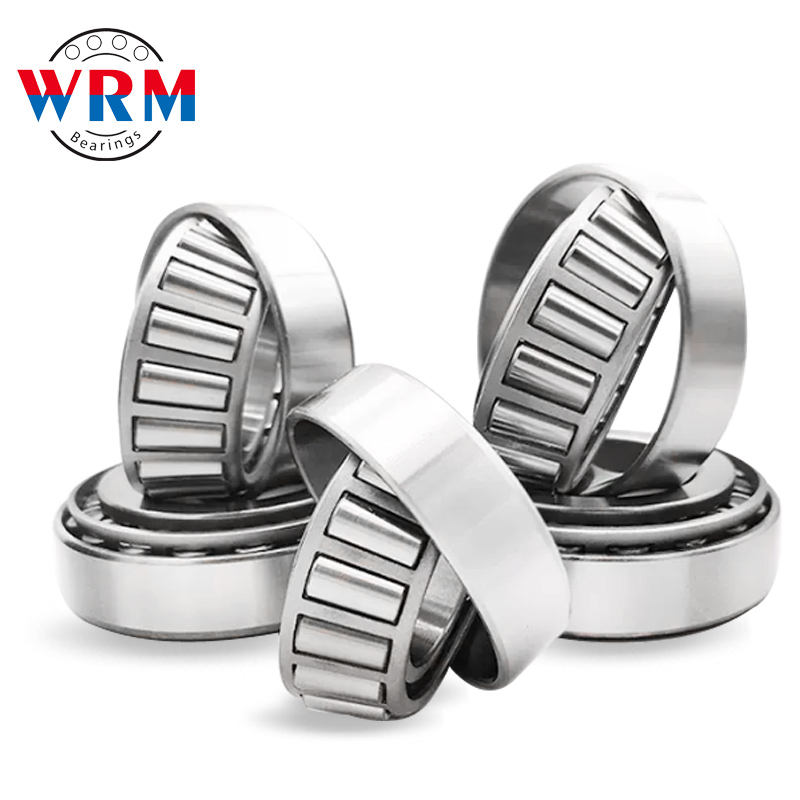

WRM 30330 Taper Roller Bearing 150*320*65mm

Product name: WRM 30330 Taper Roller Bearing 150*320*65mm
Price: ASK
Post date: 2024-06-11
Stock Quantity: 10000
Quantity:
Send Inquiry

Description:

Product Name	Tapered Roller Bearings
Material	Chrome Steel
Clearance	C0 C2 C3 C4
Place of Origin	Jiangsu,China(Mainland)
Feature	High precision,High speed,High load capacity,Low noise
Servives	Non-standard customized,OEM

Designation	Principal Dimension			Basic Load RatingsKN		Speed ratings(r/min)		Weight
Designation	d	D	B	Dynamic	Static	Grease	Oil	kg
30302	15	42	13	22.8	21.5	9000	12000	0.094
30303	17	47	14	28.2	27.2	8500	11000	0.129
30304	20	52	15	30.5	28.4	8300	11000	0.17
30305	25	62	17	46.8	48	6300	8000	0.263
30306	30	72	21	59	63	5600	7000	0.387
30307	35	80	21	75.2	82.5	5000	6300	0.515
30308	40	90	23	90.8	108	4500	5600	0.747
30309	45	100	25	108	130	4000	5000	0.984
30310	50	110	27	130	158	3800	4800	1.28
30311	55	120	29	152	188	3400	4300	1.63
30312	60	130	31	170	210	3200	4000	1.99
30313	65	140	33	195	242	2800	3600	2.44
30314	70	150	35	218	272	2600	3400	2.98
30315	75	160	37	252	318	2400	3200	3.57
30316	80	170	39	278	352	2200	3000	4.27
30317	85	180	41	305	388	2000	2800	4.96
30318	90	190	43	342	440	1900	2600	5.8
30319	95	200	45	317	368	2000	2600	6.32
30320	100	215	47	344	400	1800	2400	7.76
30321	105	225	49	371	432	1700	2300	8.74
30322	110	240	50	407	475	1600	2100	10.4
30324	120	260	55	505	611	1500	2000	13.7
30326	130	280	58	640	855	1100	1500	17.3
30330	150	320	65	802	1090	950	1300	25.2
30332	160	340	68	878	1190	900	1200	29.5
30334	170	360	72	995	1370	850	1100	35.6
30336	180	380	75	901	1110	940	1300	39.7
30348	240	500	105	1870	2960	850	1100	88.9
30352	260	540	114	2115	2940	670	900	108
