Wuxi Nengli Bearing Co., LTD.

WRM has over 20 years of manufacturing and marketing experience in deep groove ball bearings, self-aligning roller bearings, tapered roller bearings, angular contact ball bearings.

 Bearing Manufacturer   3rdYear

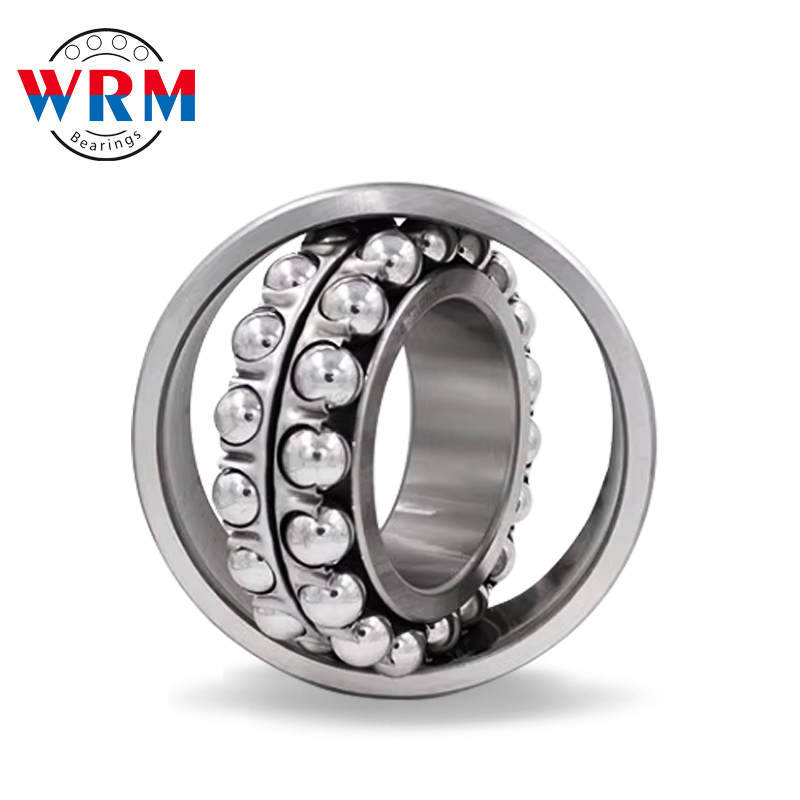

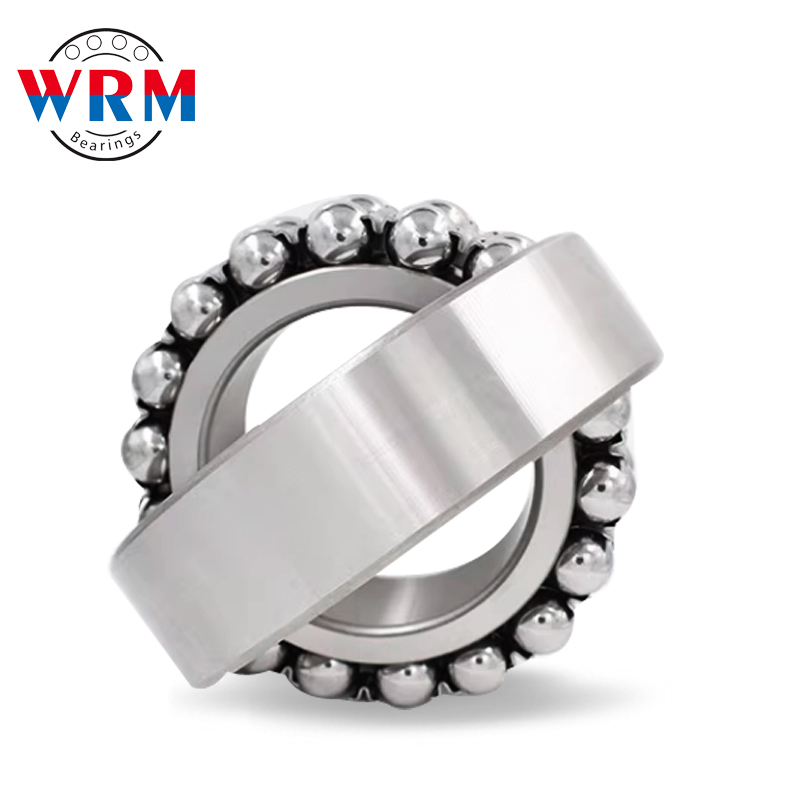

  • Product name:  WRM 1308 Self-aligning Ball Bearing 40*90*23mm
  • Price:  ASK
  • Post date:  2024-06-18
  • Stock Quantity:  10000
  • Quantity:

  • Send Inquiry
Description:

Product Name

Self-aligning Ball Bearing

Material

Chrome Steel

Clearance

C0 C2 C3 C4

Place of Origin

Jiangsu,China(Mainland)

Feature

High precision,High speed,High load capacity,Low noise

Servives

Non-standard customized,OEM

Designation Principal Dimension Basic Load Ratings Speed ratings (r/min) Weightkg
d D B Dynamic Static Grease Oil
1300 10 35 11 7.25 1.62 18000 21000 0.058
1301 12 37 12 9.45 2.16 16000 18000 0.066
1302 15 42 13 9.55 2.3 13000 16000 0.092
1303 17 47 14 12.5 3.2 12000 14000 0.128
1304 20 52 15 12.4 3.35 11000 13000 0.16
1305 25 62 17 18 5 9100 11000 0.255
1306 30 72 19 21.3 6.3 7700 9100 0.383
1307 35 80 21 25.1 7.85 6800 8000 0.5
1308 40 90 23 29.6 9.7 6000 7000 0.709
1309 45 100 25 38 12.7 5400 6300 0.953
1310 50 110 27 43.5 14.1 4900 5800 1.2
1311 55 120 29 51.5 17.9 4500 5200 1.58
1312 60 130 31 57 20.8 4100 4800 1.96
1313 65 140 33 62 22.9 3800 4500 2.42
1314 70 150 35 74.5 27.7 3500 4200 2.99
1315 75 160 37 79.5 30 3300 3900 3.55
1316 80 170 39 88.5 33 3100 3600 4.17
1317 85 180 41 97.5 38 2900 3400 4.96
1318 90 190 43 116 44.5 2700 3200 5.78
1319 95 200 45 132 51 2600 3000 6.69
1320 100 215 47 143 57.5 2400 2900 8.3
1321 105 225 49 156 64.5 2300 2700 10
1322 110 240 50 164 71.5 2200 2600 11.8
1324 120 260 55 185 90.5 2000 2400 13
