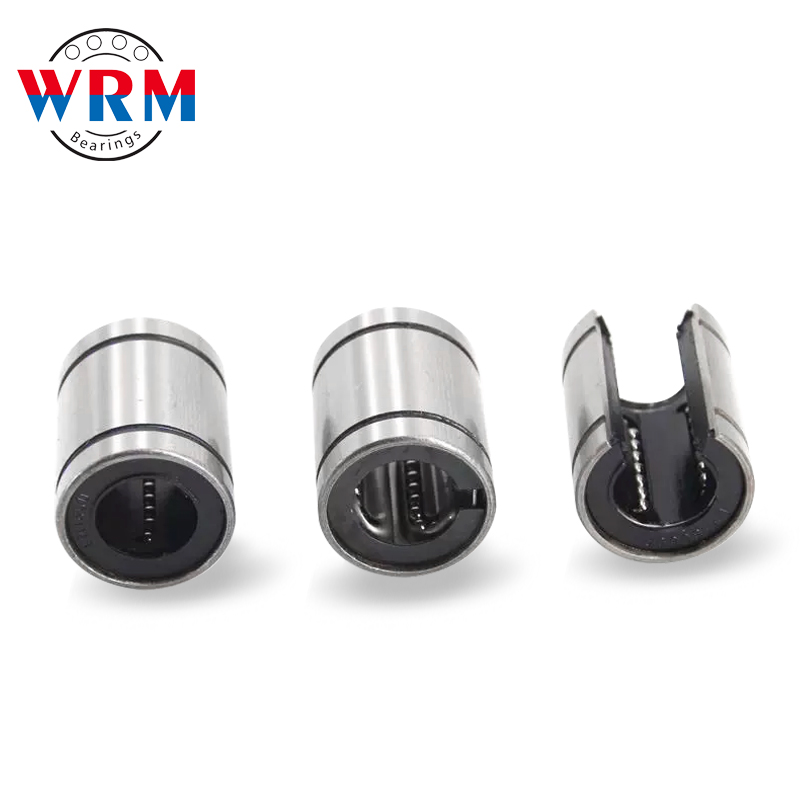

Product name: WRM Linear bearing LM4 4*8*12mm
-
-
Price: ASK
-
-
Post date: 2025-07-28
-
-
Stock Quantity: 10000
-
Quantity:
Description:
Wuxi Nengli Bearing Co., LTD., WRM , was founded in 2002 and is located in Wuxi, a developed city on the southeast coast of China. WRM has over 20 years of manufacturing and marketing experience in researching and manufacturing bearings. On this basis, we become a leading manufacturer of deep groove ball bearings, self-aligning roller bearings, tapered roller bearings, angular contact ball bearings and other bearing products. WRM specializes in the research and development of high precision, low noise, long life bearings, high quality bearings and other mechanical and transmission products. The products have mature technology, high precision, low noise, long life, reliability, some of our products have been included in the national key new products. Our factory can supply all kinds of non-standard and special bearings according to customers requirement. WRM always adheres to the spirit of quality first, integrity first. We sincerely welcome customers to cooperate with us for mutual benefit. We will try our best to provide high quality products, competitive prices, excellent service, timely delivery for every customer.
|
Product Name |
Linear bearing |
|
Material |
Chrome Steel |
|
Place of Origin |
Jiangsu,China(Mainland) |
|
Feature |
Low friction, high precision, fast speed |
|
Servives |
Non-standard customized,OEM |
|
Model NO. |

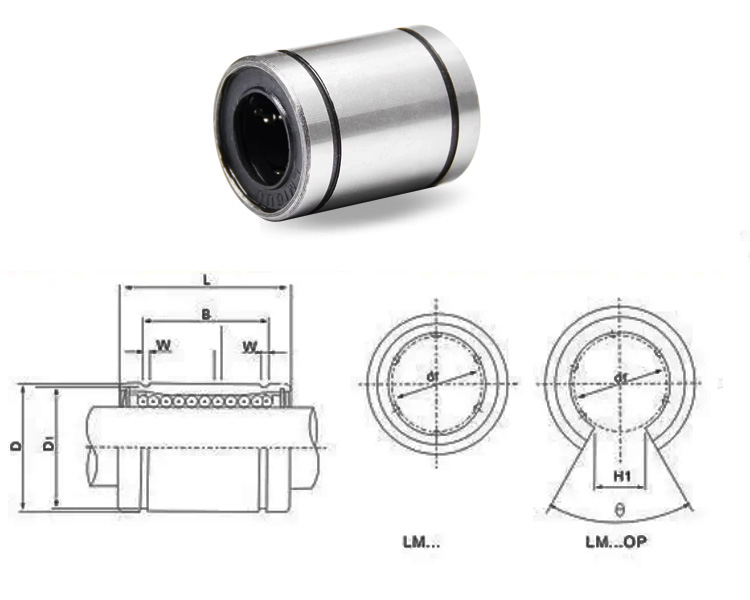

Dimensions | NO.of ball rows | Basic Load Ratings |
Weight g |
||||||
| d | D | L | B | W | D1 | CN | CON | |||
| LM3 | 3 | 7 | 10 | - | - | - | 4 | 88.2 | 108 | 0.00135 |
| LM4 | 4 | 8 | 12 | - | - | - | 4 | 88.2 | 127 | 0.0019 |
| LM5 | 4 | 5 | 10 | 10.2 | - | - | 4 | 167 | 206 | 0.004 |
| LM6 | 6 | 12 | 19 | 13.5 | 1.1 | 11.5 | 4 | 206 | 265 | 0.0076 |
| LM8 | 8 | 15 | 24 | 17.5 | 1.1 | 14.5 | 4 | 265 | 402 | 0.015 |
| LM10 | 10 | 19 | 29 | 22 | 1.3 | 18 | 4 | 373 | 549 | 0.0395 |
| LM12 | 12 | 21 | 30 | 23 | 1.3 | 20 | 4 | 412 | 598 | 0.0315 |
| LM13 | 13 | 23 | 32 | 23 | 1.3 | 22 | 4 | 510 | 775 | 0.0043 |
| LM16 | 16 | 28 | 37 | 26.5 | 1.6 | 27 | 5 | 775 | 1180 | 0.043 |
| LM20 | 20 | 32 | 42 | 30.5 | 1.6 | 30.5 | 5 | 863 | 1370 | 0.087 |
| LM25 | 25 | 40 | 59 | 41 | 1.85 | 38 | 6 | 980 | 1570 | 0.22 |
| LM30 | 30 | 45 | 64 | 44.5 | 1.85 | 43 | 6 | 1570 | 2750 | 0.25 |
| LM35 | 35 | 52 | 70 | 49.5 | 2.1 | 49 | 6 | 1670 | 3140 | 0.39 |
| LM40 | 40 | 60 | 80 | 60.5 | 2.1 | 57 | 6 | 2160 | 4020 | 0.585 |
| LM50 | 50 | 80 | 100 | 74 | 2.6 | 76.5 | 6 | 3820 | 7940 | 1.58 |
| LM60 | 60 | 90 | 110 | 85 | 3.15 | 86.5 | 6 | 4710 | 10000 | 2 |
| LM80 | 80 | 120 | 140 | 105.5 | 4.15 | 116 | 6 | 7350 | 16000 | 4.52 |
