Wafangdian Renmin Bearing Co.,LTD

OUR FACTORY HAS FULL RANGE OF BEARING MODELS AND CAN ALSO PROVIDE OEM SERVICES.

 Bearing Manufacturer   1stYear
  • Product name:  Tapered roller bearing 33205 series
  • Price:  ASK
  • Post date:  2024-06-20
  • Stock Quantity:  10000
  • Quantity:

  • Send Inquiry
Description:

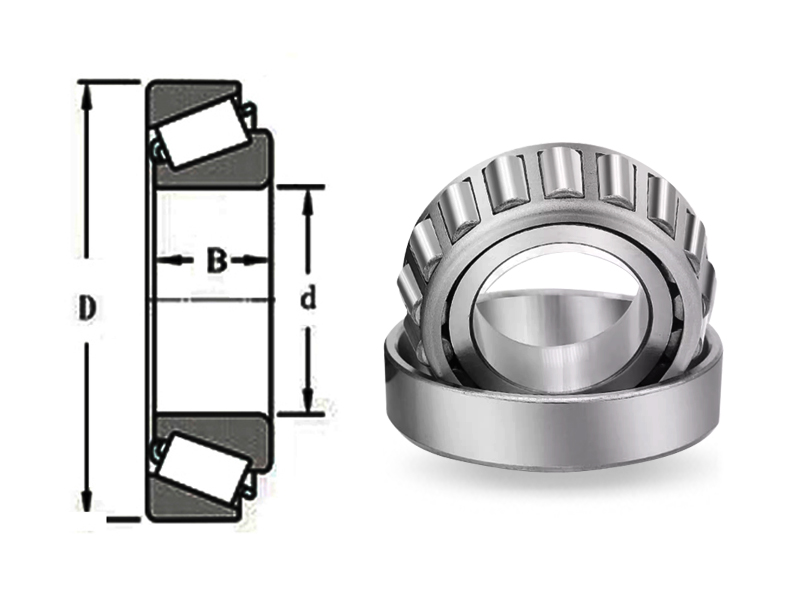

Tapered roller bearing1.jpg

Designation Old model Principal Dimension Basic Load RatingsKN Speed ratings(r/min) Weight
d D B Dynamic Static Grease Oil kg
33205 3007205E 25 52 22 47 55.8 7000 9000 0.216
33206 3007206E 30 62 25 63.8 75.5 6000 7500 0.342
33207 3007207E 35 72 28 82.5 102 5300 6700 0.515
33208 3007208E 40 80 32 105 135 5000 6300 0.715
33209 3007209E 45 85 32 110 145 4500 5600 0.771
33210 3007210E 50 90 32 112 155 4300 5300 0.825
33211 3007211E 55 100 35 142 198 3800 4800 1.15
33212 3007212E 60 110 38 165 230 3600 4500 1.51
33213 3007213E 65 120 41 202 282 3200 4000 1.99
33214 3007214E 70 125 41 208 29.8 3000 3800 2.1
33215 3007215E 75 130 41 208 300 2800 3600 2.17
33216 3007216E 80 140 46 245 362 2600 3400 2.83
33217 3007217E 85 150 47 285 450 2400 3200 3.6
33218 3007218E 90 160 55 330 500 2200 3000 4.55
33219 3007219E 95 170 58 378 568 2000 2800 5.48
33220 3007220E 100 180 63 438 665 1900 2600 6.71


Tapered roller bearing2.jpg
