Angular Contact Spherical Plain Bearing GAC..S(d 25～200)

  • Product name:  Angular Contact Spherical Plain Bearing GAC..S(d 25～200)

  • Price:  ASK
  • Post date:  2025-08-05
  • Stock Quantity:  1000
  • Quantity:

  • Send Inquiry
Description:

The Angular Contact Spherical Plain Bearing GAC..S (d 25200) features high load capacity and self-aligning capability, accommodating misalignment and angular movements. Its robust design suits heavy-duty applications, with optimized sliding surfaces for low friction and long service life. Available in bore diameters from 25 to 200 mm, it supports combined radial and axial loads. Ideal for industrial machinery, construction equipment, and harsh environments. Lubrication options enhance performance and durability.

Permissible operating temperature range :- 50~+ 150,Steel/Steel.

select Inquiry Bearing No. Dimensions(mm) Basic Load Rating(kN) Weight

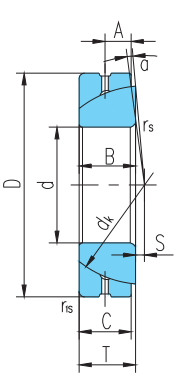

d D B C T dk S A rsr1s max a Cr Cor kg
GAC25S 25 47 15 14 15 42 0.6 7.5 1 2.5 50 250 0.148
GAC28S 28 52 15 15 16 47 1 8 1 2 60 300 0.186
GAC30S 30 55 17 15 17 49.5 13 8.5 1 4.5 63 315 0.208
GAC32S 32 58 17 16 17 52 2 8.5 1 2 71 354 0.241
GAC35S 35 62 18 16 18 55.5 2.1 9 1 4 78 390 0.268
GAC40S 40 68 19 17 19 62 2.8 9.5 1 3.5 92 463 0.327
GAC45S 45 75 20 18 20 68.5 3.5 10 1 3 108 540 0.416
GAC50S 50 80 20 19 20 74 43 10 1 1.5 123 618 0.455
GAC55S 55 90 23 20 23 82 5 11.5 1.1 4 144 721 0.645
GAC60S 60 95 23 21 23 88.5 5.7 11.5 1.1 2.5 163 817 0.714
GAC65S 65 100 23 22 23 93.5 6.5 11.5 1.1 1 180 905 0.759
GAC70S 70 110 25 23 25 102 7.2 12.5 1.1 2 206 1030 1.04
GAC75S 75 115 25 24 25 107 7.9 12.5 1.1 1 220 1129 1.12
GAC80S 80 125 29 25.5 29 115 8.6 14.5 1.1 3.5 258 1290 1.54
GAC85S 85 130 29 26.5 29 122 9.4 14.5 1.1 2 284 1422 1.61
GAC90S 90 140 32 28 32 128.5 10.1 16 1.5 3.5 316 1580 2.09
GAC95S 95 145 32 29.5 32 135 10.8 16 1.5 2 350 1750 2.22
GAC100S 100 150 32 31 32 141 11.6 16 1.5 0.5 384 1923 2.34
GAC105S 105 160 35 32.5 35 148 12.3 17.5 2 2 423 2116 2.93
GAC110S 110 170 38 34 38 155 13 19 2 3 463 2318 3.68
GAC120S 120 180 38 37 38 168 14.5 19 2 0.5 547 2735 3.97
GAC130S 130 200 45 43 45 188 18 19 2.5 1 710 3550 5.92
GAC140S 140 210 45 43 45 198 19 19 2.5 1 740 3740 6.33
GAC150S 150 225 48 46 48 211 20 20.5 3 1 850 4270 8.01
GAC160S 160 240 51 49 51 225 20 22 3 1 970 4850 9.79
GAC170S 170 260 57 55 57 246 21 27 3 1 1190 5950 12.3
GAC180S 180 280 64 61 64 260 21 28 3 1 1395 6970 17.4
GAC190S 190 290 64 62 64 275 26 30 3 0.5 1500 7500 18.2
GAC200S 200 310 70 66 70 290 26 30 3 1.5 1680 8420 23.8
