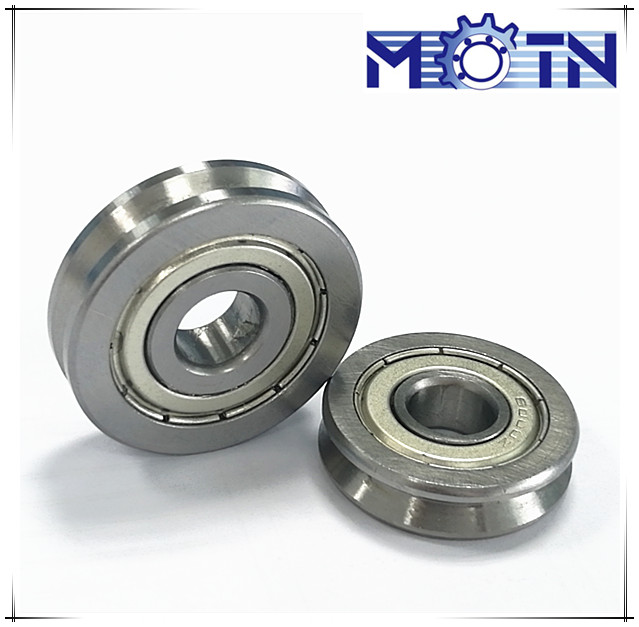

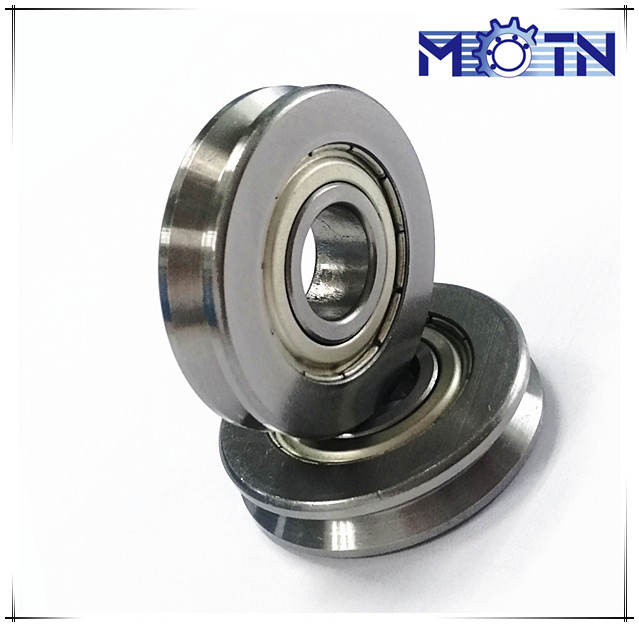

Product name: Wire Straightener Roller SS40
-
-
Price: ASK
-
-
Post date: 2023-04-03
-
-
Stock Quantity: 250
-
Quantity:
Attachment:
20170302142525.pdf
Description:
| Name: |
Wire Guides and
Straightening Roller bearings thread guides and straightening rollers |

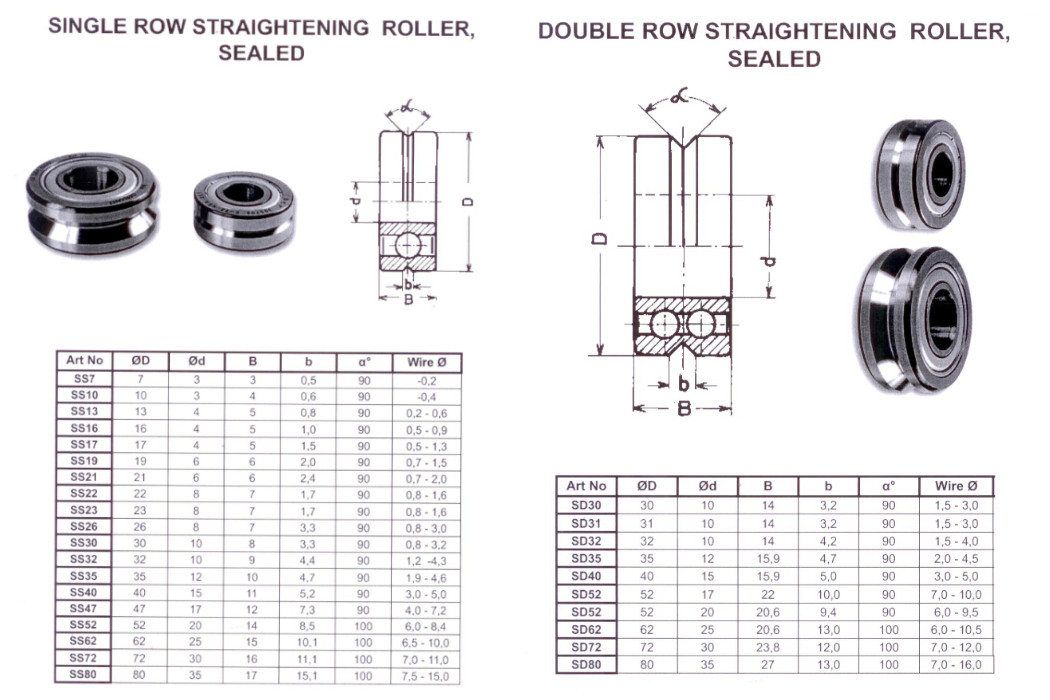

| Model Numbe | SS40 |
| Dimension: | 15mmx40mmx11mm |
| Structures | Single row type groove ball bearings |
| Groove Angle | 90 degrees |
| Material: | Chrome Steel /GCr15/ AISI420/AISI440 |
| Quality: | ABEC1 ABEC3 |
| Vibration Level: | V1;V2 |
| Noise Level: | Z1;Z2 |
| Clearance: | C0 C3 C2 C5 |
| Shields: | Rubber seals ; Steel Shield |
| Packing: | Plastic Tube packing |
| Brand: | MOTN |
| Payment term: | T/T, L/C; West Union |
| Market: | Europe 70%; Asia 20%; Other Market 10% |
| Delivery time: | 30 days |
| Origin: | JIangsu Province |
| Application: |
•

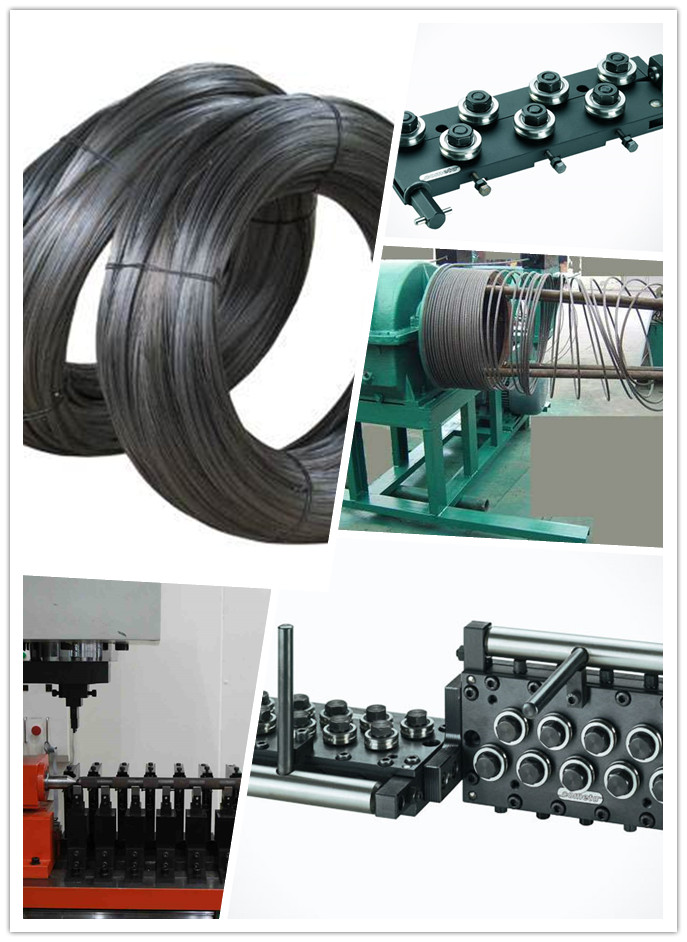

Machine tools for fiberglass cables (lawn mowers) • Machines for spring manufacturing • Machines for metal wires • Machines for spooling, un-spooling and rewinding • Fine and high precision wire drawing |
