Schaeffler Hybrid Bearing Solves Electric Coupe Challenge
Resource from: Schaeffler Likes:3109
Feb 14,2011
(Feb 2, 2011)

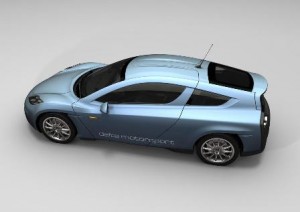

Hybrid bearing technology from Schaeffler UK has enabled Delta Motorsport to design and build an all-electric road car that is capable of 0-60mph in less than five seconds.
The Delta E-4 Coupe is a four-seat, two-door vehicle that has a top speed of 150mph and has a range of more than 200 miles on a single charge.
The vehicle can accommodate four adults but the acceleration is comparable to a Porsche 911 Turbo.
The E-4 Coupe's performance is possible thanks to the direct-drive electric motor that powers the car.
Designed in partnership with Oxford University and Oxford Yasa Motors to meet Delta Motorsport's performance requirements, the axial-flux electric motor design generates more than 600Nm of torque while only weighing 23kg.
Nick Carpenter, technical director at Delta Motorsport, said: 'The bearings were absolutely critical to enabling the modular design of the Yokeless and Segmented Armature (Yasa) motor that we helped to design with Oxford.
'Ultra-low energy vehicles such as the E-4 Coupe rely on lightweight components to compensate for the inherent problem of the low energy density of lithium batteries when compared with gasoline.
'When I first came up with the idea of the new bearing arrangement that would help to optimise the space available for the stator while accurately controlling the air gap to the rotors, I almost dismissed it due to the fact that standard bearings would have been too big and too heavy.
'However, following detailed discussions with Schaeffler UK, the company's engineers were able to offer a special design of hybrid double-row angular contact ball bearing, which has a split inner ring that was able to meet the demanding criteria of reduced weight and cross-section,' he added.
This was the breakthrough that Delta Motorsport needed if it was to develop a highly efficient plug-in battery electric car that is stylish in design and financially viable but also capable of overcoming the range anxiety perceived by many purchasers of all-electric vehicles.
Stewart Davies, senior applications engineer at Schaeffler UK, said: 'It was an interesting project to work on with very demanding criteria to meet.
'The challenge was to keep the bearing as narrow as possible in order to meet the dimensional constraints of the design envelope inside the Yasa motor, while at the same time offering a commercially viable bearing solution within a very tight timescale,' he added.
Schaeffler UK was able to supply the first samples four months after it started work on the project.
Davies said: 'The initial bearing design concept proved to be too expensive and threatened to jeopardise the project.
'Following intensive design calculations, we were able to offer a single hybrid bearing that met the key design criteria of high performance, reliability and ease of assembly but that could also be competitively produced in volume,' he added.
One of the problems encountered by Schaeffler's design team was the high seal lip speed.
With the bearing rotating at such high speeds, all calculations indicated that the seal would wear out and that the bearing would fail prematurely.
By specifying a non-contact shield this problem was solved.
Another advantage of using a non-contact shield is the increased life expectancy of the grease.
'A hybrid bearing has all the insulation qualities required for use in electric motors, including low friction, but the non-contact shield has doubled the life expectancy of the grease, which has further enhanced the performance of the bearing,' Davies said.
The vehicle can accommodate four adults but the acceleration is comparable to a Porsche 911 Turbo.
The E-4 Coupe's performance is possible thanks to the direct-drive electric motor that powers the car.
Designed in partnership with Oxford University and Oxford Yasa Motors to meet Delta Motorsport's performance requirements, the axial-flux electric motor design generates more than 600Nm of torque while only weighing 23kg.
Nick Carpenter, technical director at Delta Motorsport, said: 'The bearings were absolutely critical to enabling the modular design of the Yokeless and Segmented Armature (Yasa) motor that we helped to design with Oxford.
'Ultra-low energy vehicles such as the E-4 Coupe rely on lightweight components to compensate for the inherent problem of the low energy density of lithium batteries when compared with gasoline.
'When I first came up with the idea of the new bearing arrangement that would help to optimise the space available for the stator while accurately controlling the air gap to the rotors, I almost dismissed it due to the fact that standard bearings would have been too big and too heavy.
'However, following detailed discussions with Schaeffler UK, the company's engineers were able to offer a special design of hybrid double-row angular contact ball bearing, which has a split inner ring that was able to meet the demanding criteria of reduced weight and cross-section,' he added.
This was the breakthrough that Delta Motorsport needed if it was to develop a highly efficient plug-in battery electric car that is stylish in design and financially viable but also capable of overcoming the range anxiety perceived by many purchasers of all-electric vehicles.
Stewart Davies, senior applications engineer at Schaeffler UK, said: 'It was an interesting project to work on with very demanding criteria to meet.
'The challenge was to keep the bearing as narrow as possible in order to meet the dimensional constraints of the design envelope inside the Yasa motor, while at the same time offering a commercially viable bearing solution within a very tight timescale,' he added.
Schaeffler UK was able to supply the first samples four months after it started work on the project.
Davies said: 'The initial bearing design concept proved to be too expensive and threatened to jeopardise the project.
'Following intensive design calculations, we were able to offer a single hybrid bearing that met the key design criteria of high performance, reliability and ease of assembly but that could also be competitively produced in volume,' he added.
One of the problems encountered by Schaeffler's design team was the high seal lip speed.
With the bearing rotating at such high speeds, all calculations indicated that the seal would wear out and that the bearing would fail prematurely.
By specifying a non-contact shield this problem was solved.
Another advantage of using a non-contact shield is the increased life expectancy of the grease.
'A hybrid bearing has all the insulation qualities required for use in electric motors, including low friction, but the non-contact shield has doubled the life expectancy of the grease, which has further enhanced the performance of the bearing,' Davies said.
