V-Guide Rail for Linear Roller Bearings Dimensional Data

Resource from: PBC Likes:3029

Jul 01,2011

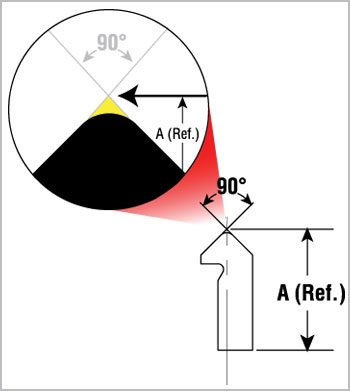

(June 30, 2011 - Rockford, IL) Occasionally dimensional information in the PBC Linear – Linear Motion Solutions catalog is misinterpreted. Below is a clarification of the detail given for the V-Guide Rails in the CRT family of linear roller bearing guideways. The overall height dimension given in the catalog is not a physical dimension that can be measured. It is the theoretical point where the two planes would intersect. Thus the dimension given in drawing is for Reference Only, and the actual rail will be slightly smaller. Keep this in mind as you check the height or the rail during inspection, or as you are designing to meet a specific vertical location requirement.

(PBC)
