What is the difference between cylindrical roller bearings and needle roller bearings

Resource from:  CBCC Likes:118
Jun 19,2023

What is the difference between cylindrical roller bearings and needle roller bearings



Cylindrical roller bearings and needle roller bearings are both types of roller bearings used to facilitate rotational motion between two components. While they share some similarities, there are notable differences between them in terms of their design and applications.

Design:

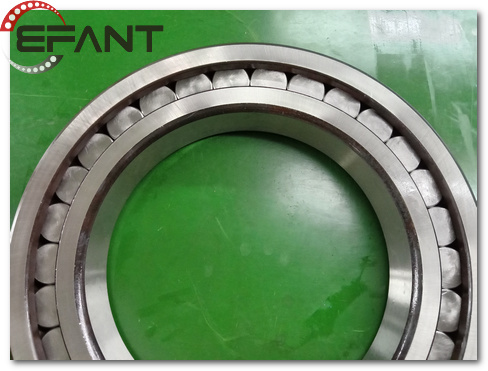

1.Cylindrical Roller Bearings: These bearings consist of cylindrical rollers that are held in place by a cage. The rollers are in contact with the outer and inner raceways, providing high radial load capacity. They can also accommodate some axial loads.

2.Needle Roller Bearings: Needle roller bearings, as the name suggests, use long and thin cylindrical rollers with a significantly smaller diameter compared to cylindrical rollers. These bearings have a high length-to-diameter ratio, and the rollers are typically guided by a cage. They are designed to handle high radial loads with limited space and low rotational speeds.

Load Capacity:

1.Cylindrical Roller Bearings: Due to their larger size and contact area, cylindrical roller bearings offer higher radial load capacity compared to needle roller bearings. They can withstand heavier loads and are suitable for applications with moderate to high radial loads and moderate axial loads.

2.Needle Roller Bearings: Although needle roller bearings have smaller rollers, they are capable of handling high radial loads. Their design allows for efficient load distribution and reduced friction between rollers and raceways. Needle roller bearings are commonly used in applications where space is limited and high radial load capacity is required.

Speed and Friction:

1.Cylindrical Roller Bearings: These bearings can accommodate higher rotational speeds due to their larger roller size and contact area. However, they may experience higher friction compared to needle roller bearings.

2.Needle Roller Bearings: The smaller size and reduced mass of needle rollers result in lower friction, allowing for smoother operation at low speeds. However, needle roller bearings are generally limited in terms of high-speed applications due to factors such as roller stability and centrifugal forces.

Application:

1.Cylindrical Roller Bearings: They are commonly used in applications such as machine tools, electric motors, gearboxes, and industrial equipment where high radial load capacity is required.

2.Needle Roller Bearings: Needle roller bearings are often found in applications with limited space and high radial loads, such as automotive transmissions, motorcycle engines, and aerospace systems. They are also used in certain types of industrial machinery and equipment.

In summary, cylindrical roller bearings excel in handling higher radial and axial loads at moderate to high speeds, while needle roller bearings are preferred for compact designs, limited space, and high radial load applications, especially at lower speeds.
